Configuration¶

This document describe how to configure Graylog in different cases.

Using FluentD/FluentBit with compression¶

logging-operator uses GELF protocol to send logs over TCP protocol to Graylog. When using TCP protocol, typically the network usage will be high and CPU usage will be low. Whenever there is a need to reduce network usage, UDP protocol can be used.

Note: This will increase the CPU load.

FluentBit¶

FluentBit offers using GELF over UDP protocol and it automatically compresses logs. Graylog already has a feature to automatically decompress logs when it receives data over GELF UDP.

It is necessary to set .Values.fluentbit.graylogProtocol with the value udp to enable compression and transferring the logs over UDP.

FluentD¶

FluentD does not offer default mechanism to compress logs when GELF is used as output plugin. FluentD has a buffer section which provides an ability to compress data before writing data to buffer chunks.

It is necessary to set .Values.fluentd.compress with the value gzip to enable compression before writing data to buffer chunks.

Using Graylog¶

You can use Graylog to view the logs for services, search and filter logs, and so on as described in the sections below.

Viewing Logs of a Specific Microservice¶

You can view logs of a specific microservice using the following methods:

Using the Search tab
Creating streams

A stream is a mechanism to filter messages by some criteria in real-time while they are processed. For example, you can add the application name as filtering criteria and view logs of only the required microservice.

To view logs of a specific microservice use the Search tab:

Navigate to the Search tab.
Enter your search query. For example, “labels-app:your_microservice_name” or “labels-app:monitoring-collector”

For more information about Graylog search query language, refer to Writing Search Queries.

Create Stream¶

To create a new stream:

Navigate to the Streams tab
Click Create Stream
Specify the required parameters
Click Save
Click Manage Rules for your stream
For example, you can upload one message
Configure the required rules.
Click Start Stream and check the results

For more information about streams, refer to Streams.

Searching and Filtering Records¶

To create searching and filtering logs, navigate to the Search tab and enter your search criteria. The search criteria can be built from any combination of fields in a log message according to the Graylog search query language.

For more information about Graylog search query language, refer to Writing Search Queries.

For example, to see all the messages from logging-fluentd pods that contain the word info, enter the following query:

container: logging-fluentd and message: info

Alternatively, you can create a stream that contains only the logs that satisfy your filtering conditions.

For more information about creating streams, refer to Streams.

The search criteria parameters are as follows:

container_name specifies the Docker container name.
host/hostname specifies the name of the OpenShift compute node.
labels-app specifies the microservice name.
message specifies the message details.
namespace_name specifies the project name.
pod_name specifies the pod name.
time/timestamp specifies the timestamp.

Saving Custom Search¶

You can save search criteria as a named query for quick usage in the future.

After the search criteria are set, click Save, enter a name for the current query, and save it. The saved search is available by the Load button for quick access.

Custom saved searches can be added automatically after the Graylog deployment through REST API.

The payload for creating search example:

{
  "id": "5f33c6369de1b46a5aa085c3",
  "queries": [
    {
      "id": "0af939f7-0ad5-47a0-ab99-7878eb144e79",
      "timerange": {
        "type": "relative",
        "range": 300
      },
      "query": {
        "type": "elasticsearch",
        "query_string": "message:CEF AND message:(LOGIN LOGOUT FORCED_LOGOUT SESSION_TIMEOUT)"
      }
    }
  ]
}

Endpoint: POST https://GRAYLOG_HOST/api/views/search

The payload for creating view example:

{
  "id": "5f33c6669de1b46a5aa085c4",
  "type": "SEARCH",
  "title": "User session history",
  "summary": "",
  "description": "",
  "search_id": "5f33c6369de1b46a5aa085c3"
}

Endpoint: POST https://GRAYLOG_HOST/api/views

Curl example:

curl --location --request POST 'https://GRAYLOG_HOST/api/api/views/search' \
--header 'Content-Type: application/json' \
--header 'X-Requested-By: cli' \
--header 'Authorization: Basic <credentials in base64>' \
-k \
--data '{
  "id": "5f33c6369de1b46a5aa085c3",
  "queries": [
    {
      "id": "0af939f7-0ad5-47a0-ab99-7878eb144e79",
      "timerange": {
        "type": "relative",
        "range": 300
      },
      "query": {
        "type": "elasticsearch",
        "query_string": "message:CEF AND message:(LOGIN LOGOUT FORCED_LOGOUT SESSION_TIMEOUT)"
      }
    }
  ]
}'

Logs Description¶

This section provides detailed descriptions of logs collected in Graylog OOB.

Log Fields¶

The list of log fields is as follows:

application_id specifies the unique application ID in OpenShift. It is usually project_name + POD_name.
container_name specifies the docker container name.
docker specifies the docker container UUID.
facility specifies the logs' collector type. It is usually fluentd.
host/hostname specifies the hostname of the logs source. For example, OpenShift node name.
kubernetes specifies the technical meta-information from Kubernetes.
labels-app specifies the Kubernetes application name.
labels-deployment specifies the Kubernetes deployment name.
labels-deploymentconfig specifies the Kubernetes deployment config name.
labels-site specifies the OpenShift site name. This is applicable only for DR schema.
level specifies the logging level.
message specifies the original log message.
namespace_id specifies the OpenShift project UUID.
namespace_name specifies the OpenShift project name.
pod_id specifies the OpenShift POD UUID.
pod_name specifies the OpenShift POD name.
source specifies the name of fluentd POD, which sent the log to Graylog.
tag specifies the internal fluentd tag of the log.
time specifies the time of logs printing by the application.
timestamp specifies the timestamp when the log comes to Graylog. It can change with time due to network lag.

All other fields are technical and can be ignored.

List of OOB streams¶

The list of OOB streams is as follows:

Application logs include stdout from docker containers running in Kubernetes (PODs)
System logs include /var/log/messages, /var/log/syslog and systemd from Kubernetes nodes and other infrastructure VMs such as Logging VM, Monitoring VM, and so on.
Audit logs include /var/log/audit/audit.log from Kubernetes nodes and other infrastructure VMs such as Logging VM, Monitoring VM, and so on; /var/log/ocp-audit.log from Kubernetes nodes; logs of Graylog docker containers; and application's audit logs.
Integration logs include logs with marker [logType=int] or [log_type=int].
Kubernetes events include logs with key-value kind=KubernetesEvent. The stream includes Kubernetes events sent as logs to Graylog form cloud-events-reader.

Cleaning Logs¶

Graylog uses Elasticsearch indices that are grouped into Graylog index sets to store log messages. ach index set has its settings, which include index rotation and data retention.

Graylog contains the following index rotation policies:

Message count
Index size on disk (default)
Index time (rotation goes after a specific time)

Graylog contains the following retention policies:

Delete index (Default)
Close index (Makes index unavailable for RW operations without deleting the logs. It is possible to restore a closed index.)
Do nothing

By default, Graylog is installed with the following retention politics:

Log stream name	Retention policy
All messages	Index size on disk = 20 Gb
Audit logs	Index size on disk = 5 Gb

To view and edit the policies:

Navigate to the System->Indices tab.
Click the required index set.
Click Edit Index Set.
Edit the required parameters.
Click Save.

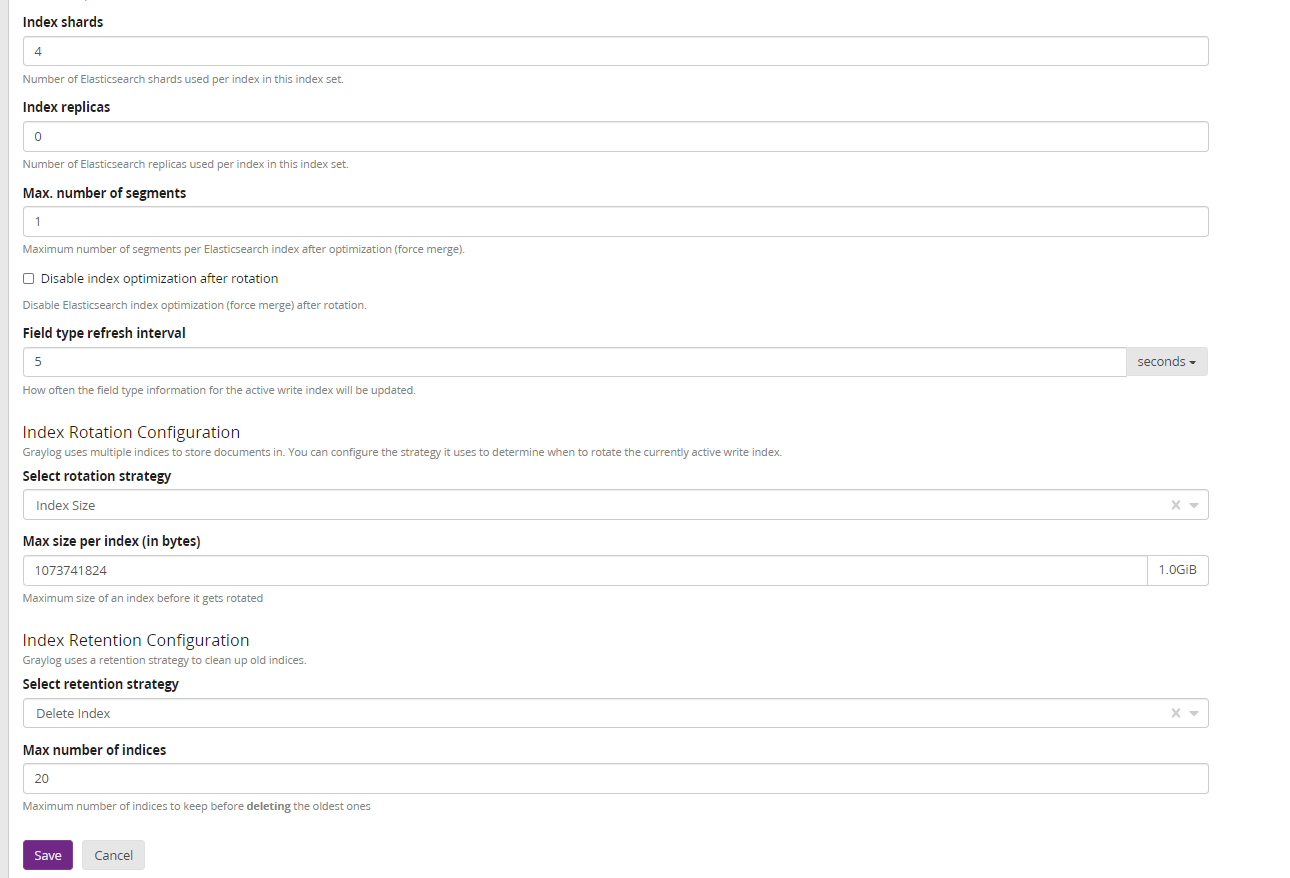

The configuration for the rotation policy is shown in the following image.

Configure Rotation Policy

Exporting Logs¶

The logs can be exported as described in the following sections.

Exporting via WEB-Interface¶

You can export the results of a search request to a CSV format through the Web interface.

To export a search request:

Perform a search.
From the ... button, click Export to CSV.

Authenticating and Managing Users¶

The information on authentication and managing users is as follows:

Roles¶

By default, there are next user roles available:

Administrator - The Administrator has full rights on the system.
Reader - The Reader has only ReadOnly rights.
Operator - The Operator has ReadOnly rights for all streams on the system except of 'Audit logs'.
AuditViewer - The AuditViewer has ReadOnly rights for all streams on the system.

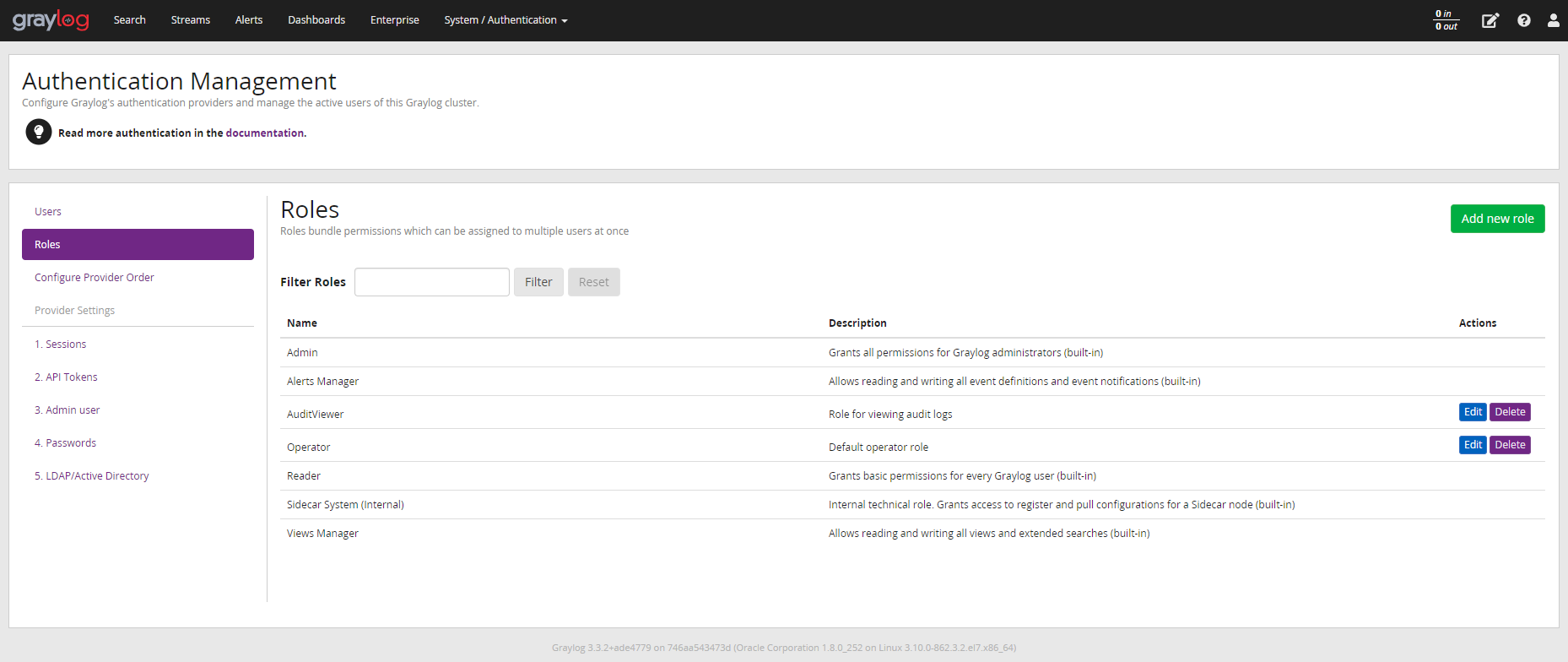

Default Roles

You can also create new user roles.

To create a new user role:

From the System/Authentication tab, click Roles.
Click Add new role.
Specify the required parameters.
Specify the R/W rights for each created stream by selecting the Allow reading or Allow editing option as appropriate.

A role is created as shown in the following image.

Create Roles

Users¶

By default, there are the following users:

Admin with Administrator role.
Operator with Reader and Operator role.
AuditViewer with Reader and AuditViewer role.

The default users are shown in the following image.

Default Users

You can create a new user in the system.

To create a new user:

From the System/Authentication tab, click Users.
Click Add new user.
Specify the required parameters.
Click Create User.

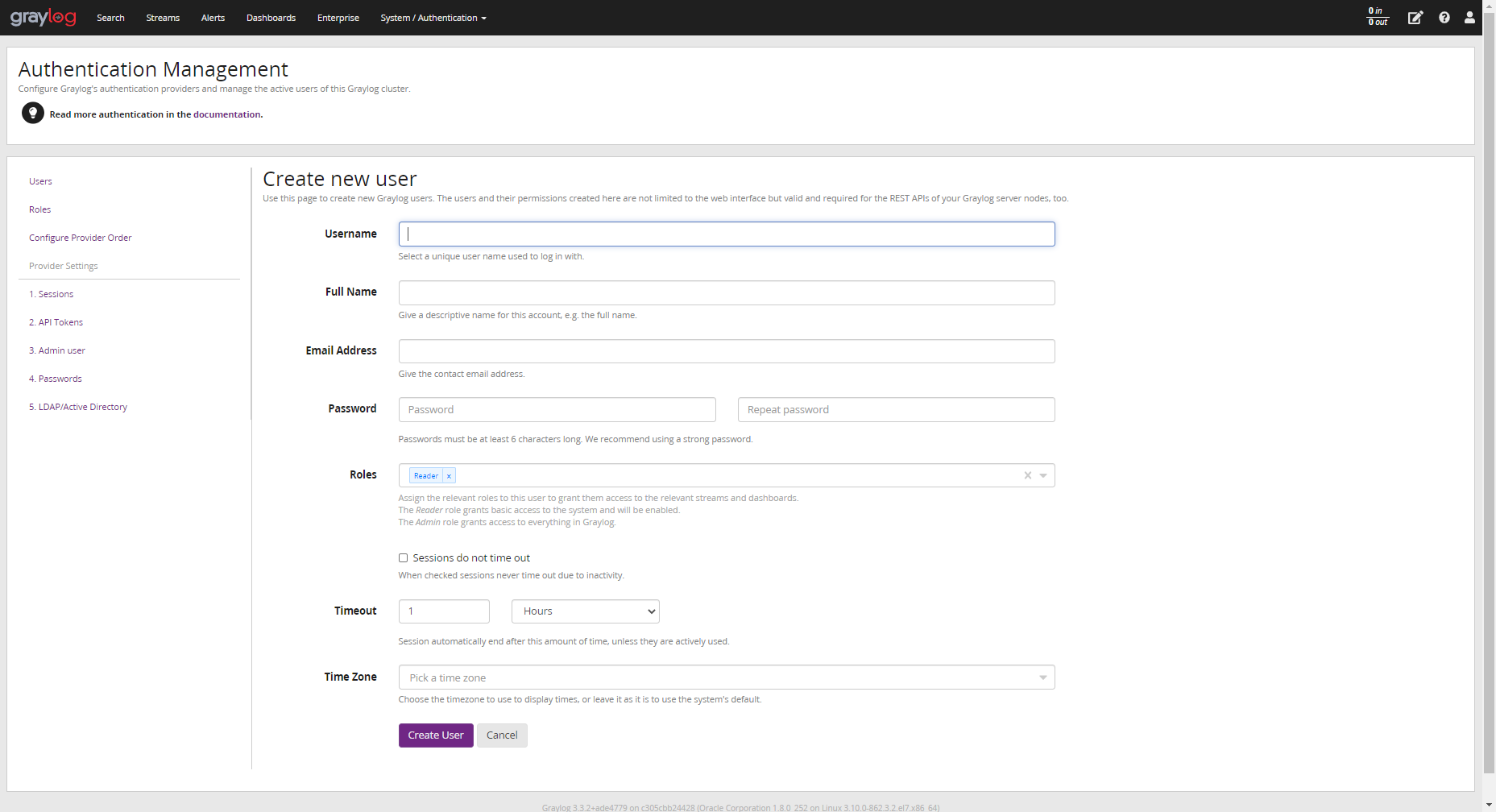

A user is created as shown in the following image.

Create Users

For more information about Graylog search query language, refer to Export Results as CSV

LDAP integration¶

To configure LDAP/AD integration, refer to the official Graylog documentation: Authentication

Note:

Graylog OOB has several system users, such as admin and operator. If these users are required to be in LDAP as well, they must be added manually.
Graylog has a known issue in the LDAP authentication provider - extra calls to the LDAP server can take place. Refer to the official issue in the following link https://github.com/Graylog2/graylog2-server/issues/2267

Audit Logs¶

Sensitive or audit logs require special processing in terms of storing time and viewing permissions. Such processing is delivered to OOB.

A special stream named Audit logs contains various audit logs. It has restricted permissions (only an administrator can view it), and a separate index set. The separate index set, the Audit index set, is responsible for the rotation of audit logs. By default, the rotation size is 5GB. It can be manually changed after deployment according to the project's needs.

This stream has several OOB criteria, by which the platform audit logs are collected into the Audit stream.

OOB criteria cover the following audit logs:

/var/log/audit/audit.log from VMs such as Kubernetes nodes, Logging VM, Monitoring VM, and so on.
Graylog audit logs
Kubernetes audit logs
Audit logs such as PostgreSQL audit, and so on.

If you want to add custom audit logs into this stream, define the criteria by which Graylog can filter the audit logs.

It is recommended to write audit logs that combine log_id with the value audit. Generally, more complicated and tricky criteria for audit logs can take place, depending on your application. An example of using log_id with the value audit is given in the following image.

Stream Rule

System Logs¶

Operation system logs from platform VMs such as Kubernetes nodes, Logging VM, Monitoring VM, and so on, are collected into a separate stream, System logs, which is provided to OOB.

This stream contains /var/log/messages logs from the VMs. The stream logs are stored in the same Default index set as any other typical logs.

Integration Logs¶

The stream contains all logs with one of the following markers:

[logType=int]
[log_type=int]

Access Logs¶

The stream contains all logs with one of the following markers:

[logType=access]
[log_type=access]

Ingress Nginx Logs¶

The stream contains all logs from pods ingress-nginx.

Sending Logs to External Destination (SIEM)¶

The following output protocols are supported:

GELF
SYSLOG

To configure logs' forwarding to an external system, perform the following steps:

Navigate to System -> Outputs
Select the required format from the drop-down list
Click Launch new output. The Launch New Output popup dialog is displayed
Specify the required parameters
Click Save

The configure logs parameters are as follows.

Title
Destination host
Transport protocol (TCP/UDP)
Destination port (make sure this port is opened for Graylog container)

Logging Application Backuper¶

Logging-backuper allows you to make backups of all logging applications such as Graylog, OpenSearch, MongoDB, and so on, and to restore if some exceptional case occurs. Logging-backuper is installed on the Graylog host machine by the deploy-logging-backuper job.

Running Backup Process¶

To run the backup process:

Navigate to GRAYLOG_HOST by SSH.
Execute the command, curl -XPOST localhost:8080/backup.

Running Restore Process¶

To run the restore process:

Navigate to the Graylog folder in root home, sudo -i && cd ~/graylog.
Get the list of available backups by executing the command, curl -XGET localhost:8080/listbackups. For example, 20180809T102744 (date and time of backup).
Use one of the backup names and run ./restore-logging.sh #{backup_name_here}. For example, ./restore-logging.sh 20180809T102744.
Wait for the restore successful message.

Changing Password¶

To change the password locally:

Navigate to the graylog folder in root home, sudo -i then cd ~/graylog
Use the change-password.sh script to change the password with the following parameters:
--user (-u) - To specify the username
--oldpass (-op) - To specify the current password
--newpass (-np) - To specify the new password
--confirmpass (-cp) - To confirm the new password
Wait for the [INFO] Password was successfully changed message

To change the password remotely:

Copy scripts change-password.sh and processing-change-password.sh to your machine
Use change-password.sh script to change the password with the following parameters:
--hosts (-h) - To specify hosts
--user (-u) - To specify the username
--oldpass (-op) - To specify the current password
--newpass (-np) - To specify the new password
--confirmpass (-cp) - To confirm the new password
--sshuser - To specify SSH login
--sshkey - To specify the path for SSH key of hosts
Wait for [INFO] Password was successfully changed message

Note: If the external destination is unreachable, then the logs are not forwarded to it until it is active.

Graylog Plugins System¶

Graylog supports custom extensions using plugins. To configure plugins, navigate to System/Configurations > Configurations as shown in the following image.

Path to Configuration Page

Graylog Obfuscation Plugin¶

The Graylog Obfuscation Plugin is necessary for anonymization of sensitive data in the logs. For more information, see Graylog Obfuscation Plugin.

Graylog Audit logs¶

The Graylog has audit logs on three security events. The information about that event is taken from access logs. The graylog audit logs can be found in Audit logs stream for graylog_graylog_1 container name.

The format of access logs:

[time][level][ip address][user][access url][user agent][status]

The event on login consists of two log record, where in the first record describe the fact of login and in second record describe who perform login to Graylog. On success login used 200 http code, on failed login used 401 http code with the additional log record.

Examples:

[2020-09-16T08:48:30,488][INFO]Invalid credentials in session create request. Actor: "urn:graylog:user:admin"

[2020-09-16T07:46:13,069][DEBUG]0.0.0.0 - [-] "POST api/system/sessions" Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/85.0.4183.83 Safari/537.36 200 -1

[2020-09-16T07:46:13,272][DEBUG]0.0.0.0 admin [-] "GET api/users/admin" Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/85.0.4183.83 Safari/537.36 200 -1

Logout events¶

Examples:

[2020-09-16T07:46:07,845][DEBUG]0.0.0.0 admin [-] "DELETE api/system/sessions/cef0692d-1154-4bb4-ba48-1f9abda83c1c" Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/85.0.4183.83 Safari/537.36 204 -1

Change password events¶

Examples:

[2020-09-16T08:37:53,746][DEBUG]0.0.0.0 admin [-] "PUT api/users/LogReader/password" Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/85.0.4183.83 Safari/537.36 204 -1

Configuration¶

Using FluentD/FluentBit with compression¶

FluentBit¶

FluentD¶

Using Graylog¶

Viewing Logs of a Specific Microservice¶

Create Stream¶

Searching and Filtering Records¶

Saving Custom Search¶

Logs Description¶

Log Fields¶

List of OOB streams¶

Cleaning Logs¶

Exporting Logs¶

Exporting via WEB-Interface¶

Authenticating and Managing Users¶

Roles¶

Users¶

LDAP integration¶

Audit Logs¶

System Logs¶

Integration Logs¶

Access Logs¶

Ingress Nginx Logs¶

Sending Logs to External Destination (SIEM)¶

Logging Application Backuper¶

Running Backup Process¶

Running Restore Process¶

Changing Password¶

Graylog Plugins System¶

Graylog Obfuscation Plugin¶

Graylog Audit logs¶

Login events¶

Logout events¶

Change password events¶
