This guide contains information of how to configure TLS for Logging components.

Steps to renew certificates

TLS certificates have a limited duration, and you can update them over time by replacing the content of corresponding Secrets. Cert-manager can do that automatically if you set renewBefore parameter for certificate.

Unfortunately, in some cases, the renewal of certificates at destinations doesn't happen automatically and additional steps are required. The table below reflects actions required after updating the certificates:

Service	No extra steps	Restart pod
Graylog HTTP server		✅
Graylog inputs		✅
Fluentd		✅
Fluent-bit		✅

After restart, components may be unavailable for a short time.

Self-signed certificate generation

You must have a correct certificate to use it for TLS: it has to contain valid IPs and DNS names as alt names, and it must not be expired.

In case when you use a wrong certificate, you can face the following problem: log in to Graylog UI and go to System -> Nodes. If you use an incorrect certificate, you'll see the message System information is currently unavailable instead of nodes' information.

If you want to use self-signed certificate, you can create it yourself, for example by using OpenSSL tool.

You can use the following SSL config file:

[ req ]
default_bits           = 2048
default_keyfile        = graylog.key
distinguished_name     = req_distinguished_name
req_extensions         = v3_req
prompt                 = no

[ req_distinguished_name ]
C                      = US
ST                     = Test ST
L                      = Test L
O                      = Qubership
OU                     = Operations Platform
CN                     = graylog
emailAddress           = test@email.address

[ v3_req ]
basicConstraints = critical, CA:FALSE
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = clientAuth, serverAuth
subjectAltName = @alt_names

[alt_names]
DNS.1 = graylog-service.logging.svc
DNS.2 = graylog-service.logging-operator.svc
IP.1 = x.x.x.x
IP.2 = x.x.y.y

Pay attention to the last section that must contain each IP and DNS name that you're going to use.

Then you can use the commands below to generate a private key in the PKCS#8 format and a self-signed certificate.

Firstly, you have to create file the SSL config file. You can use the example above as a template. Let the file be called graylog.cnf.

Secondly, you must generate RSA private key (graylog.key):

openssl genrsa -out graylog.key 4096

Then create certificate request (graylog.csr):

openssl req -new -out graylog.csr -key graylog.key -config graylog.cnf -nodes

Generate certificate file (graylog.crt):

openssl x509 -req -days 365 -in graylog.csr -signkey graylog.key -out graylog.crt -extensions v3_req -extfile graylog.cnf

Also, you must convert the private key to Graylog compatible PKCS#8 format (graylog-8.key):

openssl pkcs8 -in graylog.key -topk8 -nocrypt -out graylog-8.key

After these steps you can use graylog.crt as a Graylog certificate and graylog-8.key as a Graylog private key. If you configure TLS for Graylog HTTP interface into Cloud you should configure .graylog.tls.http.cert parameter for the certificate and .graylog.tls.http.key parameter for the private key.

Logging deploy schemes

This section describes base deployment schemes of Logging in Cloud and which connections can be closed by TLS.

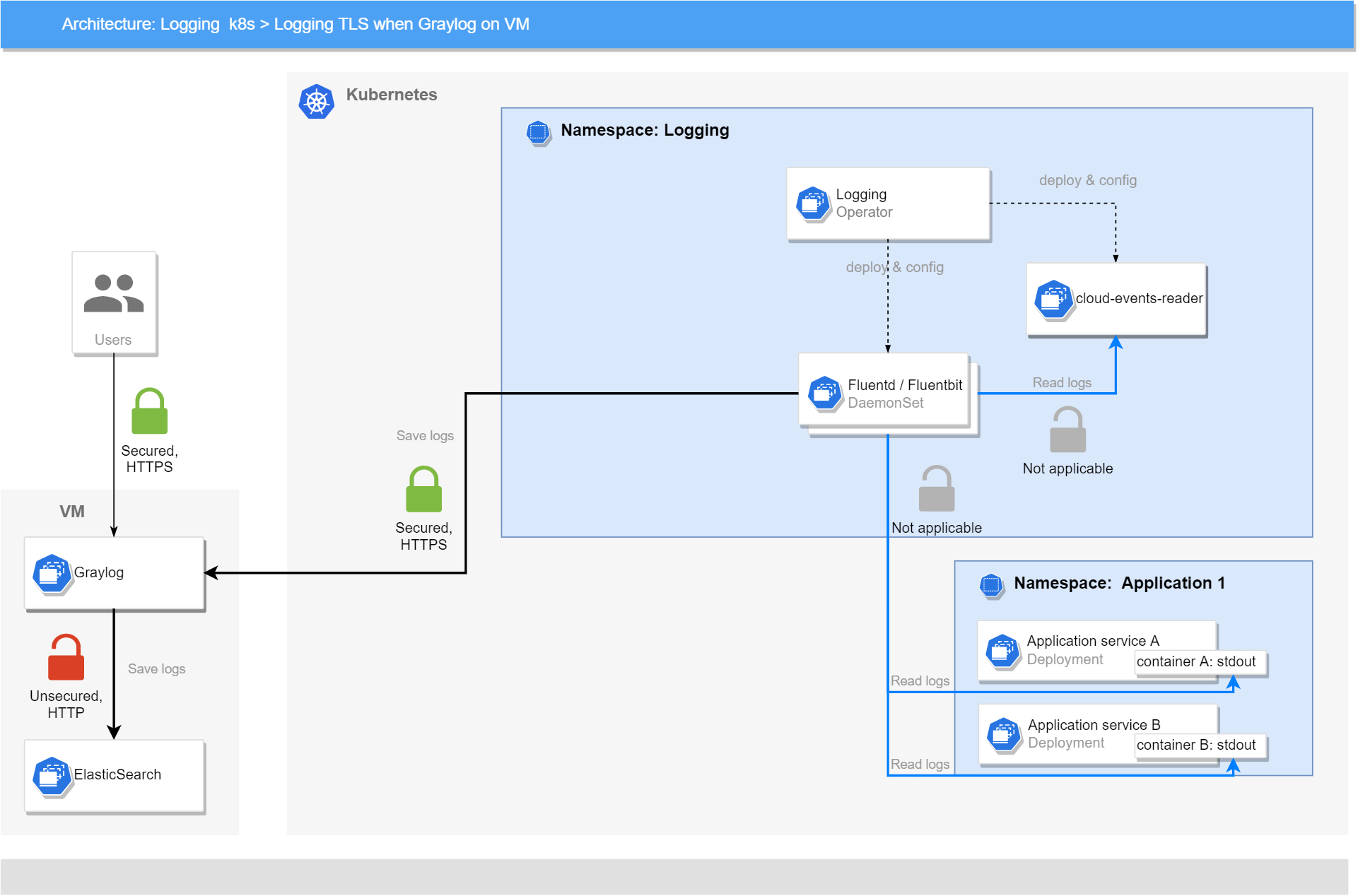

Graylog on VM

This deployment schema now positioned as default.

In this schema:

• Graylog and ElasticSearch deployed on separated VM as single docker containers
• Fluentd (or FluentBit) deployed in Kubernetes / OpenShift / another cloud as DaemonSet, collect logs and send them to Graylog outside the cloud.
• Other pods like cloud-events-reader also deployed in Kubernetes / OpenShift / another cloud.

In this schema Logging support TLS for next channels:

Connection	Status
User - Graylog UI	✅ Support
Graylog - ElasticSearch	✗ Not Support
Fluentd/FluentBit - Graylog	✅ Support
Fluentd/FluentBit - Logs	N/A

where:

• N/A is Not Applicable because Fluentd/FluentBit read logs directly from containers log files on node.

Details how to configure TLS for this deployment schema see at sections:

• Configure TLS for Graylog UI on VM
• Configure TLS for Graylog inputs on VM
• Configure TLS for Fluentd output or Configure TLS for FluentBit output

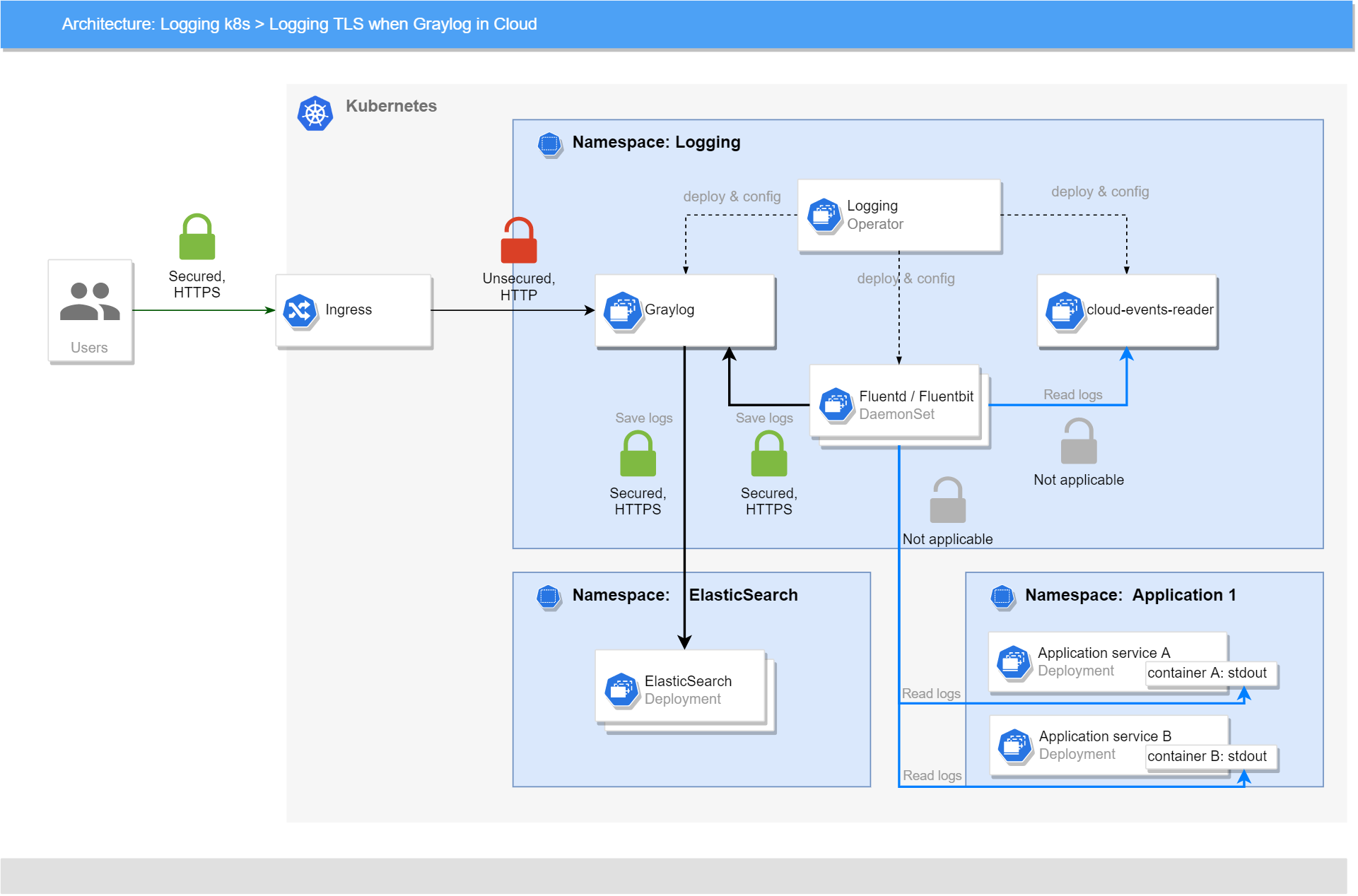

Graylog in Cloud

In this schema:

• Graylog deployed in Kubernetes / OpenShift / another cloud as Deployment
• ElasticSearch does not deploy with Logging and should be use already deployed.
• Fluentd (or FluentBit) deployed in Kubernetes / OpenShift / another cloud as DaemonSet, collect logs and send them to Graylog outside the cloud.
• Other pods like cloud-events-reader also deployed in Kubernetes / OpenShift / another cloud.

In this schema Logging support TLS for next channels:

Connection	Status
User - Graylog UI	✅ Support
Graylog - ElasticSearch	✅ Support
Fluentd/FluentBit - Graylog	✅/✗ Partially Support
Fluentd/FluentBit - Logs	N/A

where:

• N/A is Not Applicable because Fluentd/FluentBit read logs directly from containers log files on node.
• ✅/✗ Partially Support means that for Graylog in Cloud currently there is no ability to configure TLS Input. But this feature in plans and will be implemented soon.

And one more important difference from schema when Graylog deploy on VM is TLS for Graylog UI. In the Cloud we have Ingress which provide access outside the Cloud to applications UI into Cloud.

Ingress works as reverse proxy and can wrap traffic into TLS without actions from applications side. So for Graylog in Cloud there is no make sense to configure TLS for UI. TLS will work through Ingress.

But we have to enable TLS for HTTPS interface in the Graylog configuration for ElasticSearch to secure the output connection.

Details how to configure TLS for this deployment schema see at sections:

• Configure TLS for Graylog Inputs into Cloud
• Configure TLS for Graylog HTTP interface into Cloud (e.g. for ElasticSearch connection)
• Configure TLS for Fluentd output or Configure TLS for FluentBit output

Configure TLS for Logging

This section describe how to configure TLS for various components into Logging stack.

Configure TLS for Graylog UI on VM

TLS for Graylog UI works through Nginx reverse proxy.

To configure TLS for Graylog UI need execute next actions:

1. Prepare your certificates and package them into ZIP archive.
2. Upload early created ZIP archive into jos with using file choose dialog for parameter certificates.zip.
3. Specify the following parameters in PARAMETERS_YAML:

ssl_certificate=path/to/certificate/into/archive.crt
ssl_certificate_key=path/to/certificate/into/archive.pem

for example:

ssl_certificate=nginx/logging.crt
ssl_certificate_key=nginx/logging.pem

where:

• ssl_certificate is TLS certificate filename (.crt) that is presented on Deploy VM from the certificates.zip ZIP archive. Required for HTTPS UI access. If empty - self-signed certificate will be generated automatically.
• ssl_certificate_key is TLS certificate key filename (.pem) that is presented on Deploy VM from the certificates.zip ZIP archive. Required for HTTPS UI access.

Configure TLS for Graylog Inputs on VM

TLS for Graylog Inputs works directly through Graylog. Third party applications are not used.

To configure TLS between Graylog and Fluentd/FluentBit need to configure TLS settings on both sides:

• Into Graylog, need to configure Graylog TLS Inputs
• Into Fluentd/FluentBit, need to configure TLS output for Graylog

To configure TLS for Graylog Input need execute the next actions:

1. Prepare your certificates and package them into ZIP archive.
2. Upload early created ZIP archive into jos with using file choose dialog for parameter certificates.zip.
3. Specify the following parameters in PARAMETERS_YAML:

tls_enabled=true
tls_cert_file=path/to/certificate/into/archive.crt
tls_key_file=path/to/key/into/archive.crt
tls_key_password=certificate_password

for example:

tls_enabled=true
tls_cert_file=graylog/logging.crt
tls_key_file=graylog/logging.pem
tls_key_password=awesome_password

• tls_enabled allow to enable TLS for Graylog input. The possible values are true/false.
• tls_cert_file is TLS certificate filename (.crt) that is presented on Deploy VM from the certificates.zip ZIP archive. Required for input with TLS.
• tls_key_file is TLS certificate key filename (.pem or .key) that is presented on Deploy VM from the certificates.zip ZIP archive. Required for input with TLS.
• tls_key_password the password for the TLS certificate key file for Graylog input.

Note (not recommended, may be insecure): If you set tls_enabled to true, but did not set cert and key, Graylog will use self-signed certificate. Then you have to skip certificate verification on Fluentd/FluentBit side.

If you want to enable/disable TLS for Graylog input quickly, you can do it through Graylog UI with the following steps: login to Graylog UI -> System/Inputs -> Inputs -> choose the input and click on More actions -> Edit input -> check or uncheck Enable TLS.

Configure TLS for Graylog Inputs into Cloud

To configure TLS between Graylog and Fluentd/FluentBit need to configure TLS settings on both sides:

• Into Graylog, need to configure TLS for Graylog out-of-box GELF input
• Into Fluentd/FluentBit, need to configure TLS for out-of-box GELF output for Graylog

To configure TLS for Graylog Inputs need to execute the following actions:

1. Create PEM encoded certificates for Graylog. It's better to use certificates signed by any CA, not self-signed.

2. Add early created certificate and private key into Secret and create this secret. For example:

   kind: Secret
   apiVersion: v1
   type: Opaque
   metadata:
     name: graylog-input-tls
   data:
     input.crt: ...base64 encoded PEM certificate...
     input.key: ...base64 encoded PEM key...


3. During deploy need specify the following deploy parameters:

   graylog:
     tls:
       input:
         enabled: true
         cert:
           secretName: graylog-input-tls
           secretKey: input.crt
         key:
           secretName: graylog-input-tls
           secretKey: input.key
         keyFilePassword: password # Optional. The password to unlock the private key (input.key in graylog-input-tls)


4. Configure Fluentd of FluentBit outputs. You have to use CA certificate for your Graylog Input certificate as CA certificate during Fluentd/FluentBit installation. Otherwise, you can skip verification by using the corresponding parameter (not recommended, may be insecure).

Note (not recommended, may be insecure): If you set .graylog.tls.input.enabled to true, but did not set cert and key, Graylog will use self-signed certificate. Then you have to skip certificate verification on Fluentd/FluentBit side.

If you want to enable/disable TLS for Graylog input quickly, you can do it through Graylog UI with the following steps: login to Graylog UI -> System/Inputs -> Inputs -> choose the input and click on More actions -> Edit input -> check or uncheck Enable TLS.

Parameters that configure TLS for Graylog Inputs stored in the .graylog.tls.input section:

• .graylog.tls.input.enabled - Allows enabling TLS for out-of-box GELF input managed by the operator. The data type is Bool. The default value is false.
• .graylog.tls.input.generateCerts - Allows enabling integration with cert-manager. The data type is object.
• .graylog.tls.input.cert.secretName - Name of Secret with the certificate. The data type is Str.
• .graylog.tls.input.cert.secretKey - Key (filename) in the Secret with the certificate. The data type is Str.
• .graylog.tls.input.key.secretName - Name of Secret with the private key for the certificate. The data type is Str.
• .graylog.tls.input.key.secretKey - Key (filename) in the Secret with the private key for the certificate. The data type is Str.
• .graylog.tls.input.keyFilePassword - The password to unlock the private key used for securing Graylog input. The data type is Str.

Configure TLS for Graylog HTTP interface into Cloud

To configure TLS for HTTP interface (it's used for ElasticSearch) need to execute the following actions:

1. Create certificates for Graylog. Note that Graylog works only with PEM encoded certificates and PEM encoded private keys in PKCS#8 format. Look at the official Graylog documentation for additional information. It's better to use certificates signed by any CA, not self-signed. Warning: Graylog requires the use of a certificate that can verify the graylog-service.<your_k8s_namespace>.svc hostname. It means that if you deploy a logging-operator to the logging namespace on Kubernetes, you should add the graylog-service.logging.svc hostname as one of the alt_names during creating the certificate. Otherwise, you may see the following messages in Graylog logs:

Hostname graylog-service.logging.svc not verified...

1. Add early created certificate and private key in PKCS#8 format into Secret and create this secret. For example:

   kind: Secret
   apiVersion: v1
   type: Opaque
   metadata:
     name: graylog-http-tls
   data:
     graylog.crt: ...base64 encoded PEM certificate...
     graylog.key: ...base64 encoded PEM key in PKCS#8 format...


2. (optional) If external services that connect to your Graylog (e.g. ElasticSearch) use certificates, you can add CA certificates for it to the Graylog's keystore. You need to create Secret and put all CA certificates to separate keys in it. For example:

   kind: Secret
   apiVersion: v1
   type: Opaque
   metadata:
     name: graylog-ca-certs
   data:
     ca1.crt: ...base64 encoded certificate 1...
     ca2.crt: ...base64 encoded certificate 2...
     ...


Then you should set the name of Secret to the .graylog.tls.http.cacerts parameter.

Note: Certificate that you use for Graylog will be added to the keystore automatically.

1. During deploy need specify the following deploy parameters:

   graylog:
     tls:
       http:
         enabled: true
         cacerts: graylog-ca-certs # Optional
         cert:
           secretName: graylog-http-tls
           secretKey: graylog.crt
         key:
           secretName: graylog-http-tls
           secretKey: graylog.key
         keyFilePassword: password # Optional. The password to unlock the private key (graylog.key in graylog-http-tls)


Note: If you set .graylog.tls.http.enabled to true, you have to set cert and key for correct work.

Parameters that configure TLS for Graylog HTTP interface stored in the .graylog.tls.http section:

• .graylog.tls.http.enabled - Allows enabling TLS for HTTP interface. If this parameter is true, each connection to and from the Graylog server except inputs will be secured by TLS, including API calls of the server to itself. The data type is Bool.The default value is false.
• .graylog.tls.http.generateCerts - Allows enabling integration with cert-manager. The data type is object.
• .graylog.tls.http.cacerts - Contains a name of Secret with CA certificates for a custom CA store. If present, all certificates from the Secret will be added to the Java keystore. The keystore can be used for TLS in the custom inputs as well. The data type is Str.
• .graylog.tls.http.cert.secretName - (Required, if .graylog.tls.http.enabled is true) Name of Secret with the certificate. This certificate will be added to the Java keystore. The data type is Str.
• .graylog.tls.http.cert.secretKey - (Required, if .graylog.tls.http.enabled is true) Key (filename) in the Secret with the certificate. The data type is Str.
• .graylog.tls.http.key.secretName - (Required, if .graylog.tls.http.enabled is true) Name of Secret with the private key for the certificate. The data type is Str.
• .graylog.tls.http.key.secretKey - (Required, if .graylog.tls.http.enabled is true) Key (filename) in the Secret with the private key for the certificate. The data type is Str.
• .graylog.tls.http.keyFilePassword - The password to unlock the private key used for securing the HTTP interface. The data type is Str.

Configure TLS for Fluentd output

To configure TLS for Fluentd output need to execute the following actions:

1. Create certificates for Fluentd. It's better to use certificates signed by any CA, not self-signed.

2. Add early created certificates into Secret and create this secret. For example:

   kind: Secret
   apiVersion: v1
   type: Opaque
   metadata:
     name: fluentd-tls-certificates
   data:
     fluentd-ca.crt: ...base64 encoded certificate...
     fluentd.crt: ...base64 encoded certificate...
     fluentd.key: ...base64 encoded certificate...


3. During deploy need specify the following deploy parameters:

   fluentd:
     tls:
       enabled: true
       noDefaultCA: false
       version: :TLSv1_2
       ca:
         secretName: fluentd-tls-certificates
         secretKey: fluentd-ca.crt
       cert:
         secretName: fluentd-tls-certificates
         secretKey: fluentd.crt
       key:
         secretName: fluentd-tls-certificates
         secretKey: fluentd.key
       allCiphers: true
       rescueSslErrors: false
       noVerify: false


Note: Parameter which default values you doesn't want to change or can skip and doesn't specify in deploy parameters.

where:

• .fluentd.tls.enabled - Allows enabling TLS for out-of-box Graylog GELF output managed by the operator. The data type is Bool. The default value is false.
• .fluentd.tls.generateCerts - Allows enabling integration with cert-manager. The data type is object.
• .fluentd.tls.noDefaultCA - Prevents OpenSSL from using the systems CA store. The data type is Bool. The default value is false.
• .fluentd.tls.version - Any of :TLSv1, :TLSv1_1, :TLSv1_2. The data type is Str. The default value is :TLSv1_2.
• .fluentd.tls.ca.secretName - Name of Secret with CA certificate. The data type is Str.
• .fluentd.tls.ca.secretKey - Key (filename) in the Secret with CA certificate. The data type is Str.
• .fluentd.tls.cert.secretName - Name of Secret with client certificate. The data type is Str.
• .fluentd.tls.cert.secretKey - Key (filename) in the Secret with client certificate. The data type is Str.
• .fluentd.tls.key.secretName - Name of Secret with key for the client certificate. The data type is Str.
• .fluentd.tls.key.secretKey - Key (filename) in the Secret with key for the client certificate. The data type is Str.
• .fluentd.tls.allCiphers - Allows any ciphers to be used, may be insecure. The data type is Bool. The default value is true.
• .fluentd.tls.rescueSslErrors - Similar to rescue_network_errors in notifier.rb, allows SSL exceptions to be raised. The data type is Bool. The default value is false.
• .fluentd.tls.noVerify - Disable peer verification. The data type is Bool. The default value is false.

Configure TLS for FluentBit output

FluentBit has another parameters to enable TLS output:

1. Create certificates for Fluentd. It's better to use certificates signed by any CA, not self-signed.

2. Add early created certificates into Secret and create this secret. For example:

   kind: Secret
   apiVersion: v1
   type: Opaque
   metadata:
     name: fluentbit-tls-certificates
   data:
     fluentbit-ca.crt: ...base64 encoded certificate...
     fluentbit.crt: ...base64 encoded certificate...
     fluentbit.key: ...base64 encoded certificate...


3. During deploy need specify the following deploy parameters:

   fluentbit:
     tls:
       enabled: true
       ca:
         secretName: fluentbit-tls-certificates
         secretKey: fluentbit-ca.crt
       cert:
         secretName: fluentbit-tls-certificates
         secretKey: fluentbit.crt
       key:
         secretName: fluentbit-tls-certificates
         secretKey: fluentbit.key
       verify: true
       keyPasswd: <optional_password>


where:

• .fluentbit.tls.enabled - Allows enabling TLS for out-of-box Graylog GELF output managed by the operator. The data type is Bool. The default value is false.
• .fluentbit.tls.generateCerts - Allows enabling integration with cert-manager. The data type is object.
• .fluentbit.tls.ca.secretName - Name of Secret with CA certificate. The data type is Str.
• .fluentbit.tls.ca.secretKey - Key (filename) in the Secret with CA certificate. The data type is Str.
• .fluentbit.tls.cert.secretName - Name of Secret with client certificate. The data type is Str.
• .fluentbit.tls.cert.secretKey - Key (filename) in the Secret with client certificate. The data type is Str.
• .fluentbit.tls.key.secretName - Name of Secret with key for the client certificate. The data type is Str.
• .fluentbit.tls.key.secretKey - Key (filename) in the Secret with key for the client certificate. The data type is Str.
• .fluentbit.tls.verify - Force certificate validation. The data type is Bool. The default value is true.
• .fluentbit.tls.keyPasswd - Optional password for private key file. The data type is Str.

About cert-manager

Cert-manager is X.509 certificate controller for Kubernetes and OpenShift workloads. It will obtain certificates from a variety of Issuers, both popular public Issuers as well as private Issuers, and ensure the certificates are valid and up-to-date, and will attempt to renew certificates at a configured time before expiry.

In order for cert-manager to generate a secret containing certificates and private key, you need to take several steps:

1. Make sure cert-manager is installed on the cluster. It is usually installed in the cert-manager namespace.
2. You should use Issuer or ClusterIssuer resource for creating certificate. These resources represent certificate authorities (CAs) that are able to generate signed certificates by honoring certificate signing requests. Example of namespaced self-signed Issuer resource:

apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: logging-self-signed-issuer
spec:
  selfSigned: {}

1. Then you can create Certificate resource. Configuration of this resource allows to change parameters of generated certificates and private key. You can find an example of certificate resource here.
2. Cert-manager will create Certificate Request resource based on created Certificate resource.
3. Also, cert-manager will create Secret resource with name specified in the Certificate resource previously. Generated secret contains fields ca.crt with PEM CA certificate, tls.crt with PEM private key and tls.key with PEM signed certificate chain by default.

The generated secret can be used in pods later as a volume.

Logging-operator integration with cert-manager

If you use logging-operator, you don't need to create cert-manager resources for its components manually.

Each component of logging-operator that has TLS configuration can use cert-manager and has the same configuration for it. You enable and customise work with cert-manager separately for Fluentd, Fluent-bit, Graylog HTTP server or inputs by the same in a similar way via the tls.generateCerts section.

Integration with cert-manager can be configured with fluentd.tls.generateCerts, fluentbit.tls.generateCerts, graylog.tls.http.generateCerts and graylog.tls.input.generateCerts. The only required parameter to use cert-manager is generateCerts.enabled, which must be set to true. Each generateCerts section has the following parameters:

• generateCerts.enabled: enables or disables integration of component with cert-manager.
• generateCerts.secretName: defines the name of the generated Secret (default values: fluentd-cert-manager-tls for Fluentd, fluentbit-cert-manager-tls for Fluent-bit, graylog-http-cert-manager-tls for Graylog HTTP, graylog-input-cert-manager-tls for Graylog inputs).
• generateCerts.clusterIssuerName: allows to specify pre-created ClusterIssuer instead of Issuer created by Helm to verify generated certs. Notice that ClusterIssuer is a cluster-wide entity and should be created manually before deploy in any namespace on cluster. If clusterIssuerName is empty (by default), Helm will create Issuer with single self-signed CA certificate for all components. See more info below.
• generateCerts.duration: allows configuring duration of generated certificates (integer value in days; 365 by default).
• generateCerts.renewBefore: specifies how long before expiry a certificate should be renewed (integer value in days; 15 by default).

NOTE: If you want to connect Fluentd or Fluent-bit and Graylog with TLS, you must ensure that the certificates pass verification during the handshake. If you're using cert-manager, you can use the same Issuer/ClusterIssuer for all components.

If generateCerts is enabled for at least one component, Helm will create an Issuer with a self-signed CA certificate inside the namespace containing the logging-operator during deploy. In more detail, the following resources will be created:

1. Issuer logging-self-signed-issuer that can be used for self-signed certs creation;
2. CA certificate logging-self-signed-ca-certificate based on logging-self-signed-issuer Issuer;
3. Secret logging-self-signed-ca-certificate that contains created CA certificate;
4. Issuer logging-ca-issuer based on logging-self-signed-ca-certificate CA certificate.

Issuer logging-ca-issuer will be used for every certificate generated by cert-manager for logging-operator, if clusterIssuerName is not specified for the component.

Examples

Graylog in cloud with manually created secrets

graylog:
  tls:
    input:
      enabled: true
      cert:
        secretName: graylog-input-tls
        secretKey: input.crt
      key:
        secretName: graylog-input-tls
        secretKey: input.key
      keyFilePassword: password # Optional
    http:
      enabled: true
      cacerts: graylog-ca-certs # Optional
      cert:
        secretName: graylog-http-tls
        secretKey: graylog.crt
      key:
        secretName: graylog-http-tls
        secretKey: graylog.key
      keyFilePassword: password # Optional

Graylog in cloud with cert-manager integration

graylog:
  tls:
    input:
      enabled: true
      generateCerts:
        enabled: true
        secretName: graylog-input-cert-manager-tls # Optional
        clusterIssuerName: ""                      # Optional
        duration: 365                              # Optional
        renewBefore: 15                            # Optional
    http:
      enabled: true
      generateCerts:
        enabled: true
        secretName: graylog-http-cert-manager-tls # Optional
        clusterIssuerName: ""                     # Optional
        duration: 365                             # Optional
        renewBefore: 15                           # Optional

Fluentd in cloud with manually created secrets

fluentd:
  tls:
    enabled: true
    noDefaultCA: false    # Optional
    version: :TLSv1_2     # Optional
    ca:
      secretName: fluentd-tls-certificates
      secretKey: fluentd-ca.crt
    cert:
      secretName: fluentd-tls-certificates
      secretKey: fluentd.crt
    key:
      secretName: fluentd-tls-certificates
      secretKey: fluentd.key
    allCiphers: true       # Optional
    rescueSslErrors: false # Optional
    noVerify: false        # Optional

Fluentd in cloud with cert-manager integration

fluentd:
  tls:
    enabled: true
    generateCerts:
      enabled: true
      secretName: fluentd-cert-manager-tls # Optional
      clusterIssuerName: ""                # Optional
      duration: 365                        # Optional
      renewBefore: 15                      # Optional

Fluent-bit in cloud with manually created secrets

fluentbit:
  tls:
    enabled: true
    ca:
      secretName: fluentbit-tls-certificates
      secretKey: fluentbit-ca.crt
    cert:
      secretName: fluentbit-tls-certificates
      secretKey: fluentbit.crt
    key:
      secretName: fluentbit-tls-certificates
      secretKey: fluentbit.key
    verify: true        # Optional
    keyPasswd: password # Optional

Fluent-bit in cloud with cert-manager integration

fluentbit:
  tls:
    enabled: true
    generateCerts:
      enabled: true
      secretName: fluentbit-cert-manager-tls # Optional
      clusterIssuerName: ""                  # Optional
      duration: 365                          # Optional
      renewBefore: 15                        # Optional
