AWS CloudWatch

Supported features matrix:

Monitoring System	Metrics	Dashboards	Alerting	Autoscaling
Amazon CloudWatch	✓ Yes	✗ No	✗ No	✗ No
Amazon Managed Prometheus	✓ Yes	-	✓ Yes	-
Amazon Managed Grafana	-	✓ Yes	-	-

Legend:

• Yes - The feature is supported and implemented.
• No - The feature is not supported by the target monitoring system.
• - - The feature is not applicable.

Integration between AWS CloudWatch or AWS Managed Prometheus and Monitoring Stack should be configured before deploying Monitoring, and it is required to set the correct deployment parameters to enable the necessary features.

Get Metrics from AWS CloudWatch

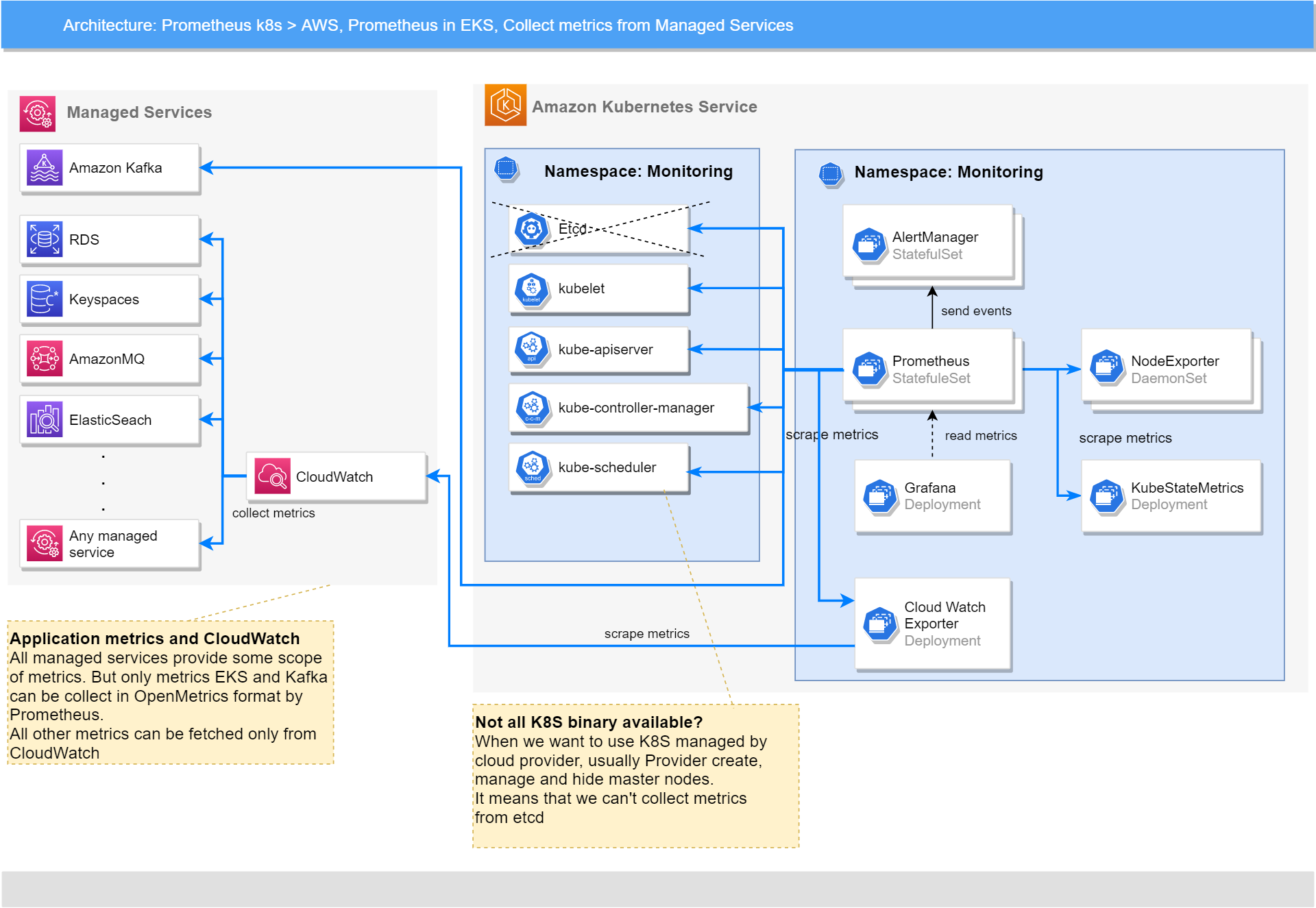

The following image describes how platform monitoring is integrated with Amazon CloudWatch.

In general, the ability to collect metrics from CloudWatch is provided, which it collects from other AWS Managed Services. These metrics are collected by Prometheus and can be used for showing metrics and alerting in Grafana and AlertManager.

CloudWatch Metrics

Integration of platform monitoring with AWS CloudWatch takes place through the CloudWatch Exporter. For more information, refer to https://github.com/prometheus/cloudwatch_exporter.

How to Configure CloudWatch Exporter

To configure the CloudWatch Exporter, choose the managed services which you want to monitor, and then choose the metrics that can be useful for your purposes from the monitoring section of the official documentation for the managed service.

The following table contains links to some AWS managed services that can be useful to collect metrics. If the table doesn't contain the required managed service, you can the find the necessary metrics in the official AWS documentation at https://docs.aws.amazon.com/.

Note: You can get a full list of metrics for your environment and for a specific managed service using the Amazon CLI command.

aws cloudwatch list-metrics # should print all metrics and them dimensions for selected environment
aws cloudwatch list-metrics --namespace <namespace> # should print metrics for specified namespace and them dimensions for selected environment

For the full list of flags and examples, refer to the AWS CLI Reference at https://awscli.amazonaws.com/v2/documentation/api/latest/reference/cloudwatch/list-metrics.html.

Managed Service	Namespace	Metrics list
Application Load Balancers	AWS/ApplicationELB	https://docs.aws.amazon.com/elasticloadbalancing/latest/application/load-balancer-cloudwatch-metrics.html
Classic Elastic Load Balancers	AWS/ELB	https://docs.aws.amazon.com/elasticloadbalancing/latest/classic/elb-cloudwatch-metrics.html
Network Load Balancers	AWS/NetworkELB	https://docs.aws.amazon.com/elasticloadbalancing/latest/network/load-balancer-cloudwatch-metrics.html
Keyspaces	AWS/Cassandra	https://docs.aws.amazon.com/keyspaces/latest/devguide/metrics-dimensions.html
DocumentDB	AWS/DocDB	https://docs.aws.amazon.com/documentdb/latest/developerguide/cloud_watch.html
DynamoDB: NoSQL Key-Value Database	AWS/DynamoDB	https://docs.aws.amazon.com/amazondynamodb/latest/developerguide/metrics-dimensions.html
Elastic Block Storage	AWS/EBS	https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/using_cloudwatch_ebs.html
ElastiCache	AWS/Elasticache	https://docs.aws.amazon.com/AmazonElastiCache/latest/red-ug/CacheMetrics.Redis.html
Elastic Compute Cloud (EC2)	AWS/EC2	https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/viewing_metrics_with_cloudwatch.html
Elastic File System	AWS/EFS	https://docs.aws.amazon.com/efs/latest/ug/efs-metrics.html
ElasticSearch	AWS/ES	https://docs.aws.amazon.com/elasticsearch-service/latest/developerguide/es-managedomains-cloudwatchmetrics.html
Kinesis Data Stream	AWS/Kinesis	https://docs.aws.amazon.com/streams/latest/dev/monitoring-with-cloudwatch.html
Network Firewall	AWS/NetworkFirewall	https://docs.aws.amazon.com/network-firewall/latest/developerguide/monitoring-cloudwatch.html
NAT Gateway	AWS/NATGateway	https://docs.aws.amazon.com/vpc/latest/userguide/vpc-nat-gateway-cloudwatch.html
Managed Message Broker Service	AWS/AmazonMQ	https://docs.aws.amazon.com/amazon-mq/latest/developer-guide/security-logging-monitoring-cloudwatch.html
Relational Database Service	AWS/RDS	https://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/monitoring-cloudwatch.html
Route 53 (health checks)	AWS/Route53	https://docs.aws.amazon.com/Route53/latest/DeveloperGuide/monitoring-cloudwatch.html
Route53 (hosted zones)	AWS/Route53	https://docs.aws.amazon.com/Route53/latest/DeveloperGuide/monitoring-hosted-zones-with-cloudwatch.html
Route53 Resolver (endpoints)	AWS/Route53Resolver	https://docs.aws.amazon.com/Route53/latest/DeveloperGuide/monitoring-resolver-with-cloudwatch.html
Route53 Resolver (DNS Firewall rule groups)	AWS/Route53Resolver	https://docs.aws.amazon.com/Route53/latest/DeveloperGuide/monitoring-resolver-dns-firewall-with-cloudwatch.html
S3 Object Storage	AWS/S3	https://docs.aws.amazon.com/AmazonS3/latest/userguide/metrics-dimensions.html
Managed Apache Kafka	AWS/Kafka	https://docs.aws.amazon.com/msk/latest/developerguide/metrics-details.html

Note: For Kafka, Amazon provides the ability to collect OpenMetrics. For more information, refer to https://docs.aws.amazon.com/msk/latest/developerguide/open-monitoring.html.

Examples of cloudwatch-exporter configuration for some managed services:

• ALB

    metrics:
    - aws_namespace: AWS/ApplicationELB
      aws_metric_name: UnHealthyHostCount
      aws_dimensions: [TargetGroup, LoadBalancer]
      aws_statistics: [Maximum]
    - aws_namespace: AWS/ApplicationELB
      aws_metric_name: UnHealthyHostCount
      aws_dimensions: [TargetGroup, LoadBalancer, AvailabilityZone]
      aws_statistics: [Maximum]
    - aws_namespace: AWS/ApplicationELB
      aws_metric_name: ActiveConnectionCount
      aws_dimensions: [TargetGroup, LoadBalancer]
      aws_statistics: [Average]


• S3

    metrics:
    - aws_namespace: AWS/S3
      aws_metric_name: NumberOfObjects
      aws_dimensions: []
      aws_statistics: [Maximum]
      period_seconds: 86400
    - aws_namespace: AWS/S3
      aws_metric_name: BucketSizeBytes
      aws_dimensions: []
      aws_statistics: [Average]
      period_seconds: 86400


The configuration must contain metrics (with statistics, dimensions, and so on) that you want to see in Prometheus. The official AWS documentation has information about each metric, the most useful statistics for it, and the possible sets of dimensions.

Important: If a metric has different sets of dimensions, the configuration should contain each variant of the metric with its own set of dimensions. In other words, the RequestCount metric with TargetGroup and LoadBalancer dimensions, and the same metric RequestCount with only the LoadBalancer dimension, are different metrics that should be placed as two different list items in the configuration. One metric with two different statistics also should be written as two different list items.

This configuration in the YAML format should be placed as a value for the .Values.cloudwatchExporter.config parameter. For more information, refer to the cloudwatch-exporter section.

Examples of configuration files for cloudwatch-exporter by namespace (these configurations can be used as-is):

• ApplicationELB
• ELB
• NetworkELB
• Route53
• Route53Resolver

How to Setup Monitoring in CloudWatch

There are no any specific steps or parameters for deploying monitoring in AWS EKS.

To deploy monitoring in AWS, refer to the Platform Monitoring Installation Procedure

How to Setup Metrics Collection from CloudWatch

This section describe how to configure metrics collection from AWS CloudWatch and the steps that are to be executed before the deployment.

Credentials and Permissions

CloudWatch Exporter uses the AWS Java SDK. For more information, see http://docs.aws.amazon.com/AWSSdkDocsJava/latest/DeveloperGuide/welcome.html. The AWS Java SDK offers a variety of ways to provide credentials. For more information, see http://docs.aws.amazon.com/AWSSdkDocsJava/latest/DeveloperGuide/credentials.html. This includes the AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY environment variables.

There are two ways to use cloudwatch-exporter in the EKS cluster: using an IAM role (recommended) or an IAM user.

Using an IAM Role (recommended)

You can use an IAM role for Kubernetes service accounts to allow pods in EKS clusters using AWS services without giving open entry details as AWS access key ID and AWS secret access key.

In general, instructions for configuring roles for service accounts are described in the official documentation in the IAM roles for service accounts section at https://docs.aws.amazon.com/eks/latest/userguide/iam-roles-for-service-accounts.html.

This section is similar to Set up IAM Roles for Service Accounts, but describes how to create a role for cloudwatch-exporter in a more detailed manner.

To create and use an IAM role for the cloudwatch-exporter service account:

Step 1. Make sure that an IAM OIDC provider is connected to the EKS cluster, or create one. For more information to create an IAM OIDC provider for your cluster, see https://docs.aws.amazon.com/eks/latest/userguide/enable-iam-roles-for-service-accounts.html.

You can also determine whether you have an existing IAM OIDC provider for your cluster using an AWS console:

Navigate to EKS > Clusters > your cluster > Details > if OpenID Connect provider URL has a URL, go to the next step.

Step 2. Create IAM policies for cloudwatch-exporter to access CloudWatch.

Step 2.1. The cloudwatch:ListMetrics, cloudwatch:GetMetricStatistics, and cloudwatch:GetMetricData IAM permissions are required, so you can create a policy like the following (for example, named CloudWatchExporterMonitoring):

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "cloudwatch:GetMetricData",
                "cloudwatch:GetMetricStatistics",
                "cloudwatch:ListMetrics"
            ],
            "Resource": "*"
        }
    ]
}

Step 2.2. (Optional) The tag:GetResources IAM permission is also required to use the aws_tag_select feature.

Important: The tag:GetResources permission is required to access Resource Groups and Tagging endpoints, like tagging.<region>.amazonaws.com, which doesn't work with VPC. So the aws_tag_select feature does not work with VPC. For the full list of endpoints available in VPC, refer to the official documentation at https://docs.aws.amazon.com/vpc/latest/privatelink/integrated-services-vpce-list.html. If required, use the following policy (for example, named CloudWatchExporterMonitoringTags):

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "tag:GetResources"
            ],
            "Resource": "*"
        }
    ]
}

Step 3. Create an IAM role for ServiceAccount. For more information, see https://docs.aws.amazon.com/eks/latest/userguide/associate-service-account-role.html.

Step 3.1. To find the AWS account ID, navigate to AWS console > IAM. You can find the AWS account ID in the AWS account section.

Alternatively, run the following command in the AWS CLI:

account_id=$(aws sts get-caller-identity --query "Account" --output text)

Let us assume that the account ID is placed in the account_id variable.

Step 3.2. To find the OpenID Connect provider for your EKS cluster, navigate to AWS console > EKS. You can find the OIDC provider in the Details section. Copy this value without https:// prefix (format: oidc.eks.<region>.amazonaws.com/id/<cluster_id>).

Alternatively, run the following command in the AWS CLI. Replace my-cluster with the name of your cluster:

oidc_provider=$(aws eks describe-cluster --name my-cluster --region $AWS_REGION --query "cluster.identity.oidc.issuer" --output text | sed -e "s/^https:\/\///")

Let us assume that the OpenID Connect provider is placed in the oidc_provider variable.

Step 3.3. Let us assume that the service account name for cloudwatch-exporter is placed in the service_account variable and namespace for cloudwatch-exporter is placed in the namespace variable, and execute the following commands for the AWS CLI:

export namespace=<cloudwatch_exporter_namespace>
export service_account=<cloudwatch_exporter_service_account_name>

Step 3.4. Create an IAM role using the AWS console. Navigate to IAM > Roles > Create role.

1. Select Custom trust policy and use the following JSON, which replaces all "variables" starting with $ with the corresponding values from the previous steps:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::$account_id:oidc-provider/$oidc_provider"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "$oidc_provider:aud": "sts.amazonaws.com",
                    "$oidc_provider:sub": "system:serviceaccount:$namespace:$service_account"
                }
            }
        }
    ]
}

1. Select the policies for cloudwatch-exporter access to CloudWatch created in Step 2. (For example, CloudWatchExporterMonitoring and (optional) CloudWatchExporterMonitoringTags).
2. Enter a name for the role (for example, CloudWatchExporterServiceAccount), a description, check the other details. Click Create role.

Step 4. Deploy monitoring-operator with cloudwatch-exporter and add the following annotation to the created service account by using the .Values.cloudwatchExporter.serviceAccount.annotations parameter or manually:

eks.amazonaws.com/role-arn: arn:aws:iam::$account_id:role/$iam_role

Example of parameters during the deployment:

cloudwatchExporter:
  ...
  serviceAccount:
    annotations:
      eks.amazonaws.com/role-arn: arn:aws:iam::$account_id:role/$iam_role

Where, $account_id is the AWS account ID (Step 3.1.) and $iam_role is the name of the role created in Step 3.4. (for example, CloudWatchExporterServiceAccount).

Step 5. (Optional) In some cases, you may need to configure the AWS Security Token Service endpoint for a service account. For more information, see https://docs.aws.amazon.com/eks/latest/userguide/configure-sts-endpoint.html.

In general, if the Kubernetes version of your cluster is 1.22 or higher, STS endpoint type should be configured as Regional. Otherwise, the endpoint type should be configured as Global.

To use the Regional type, add the following annotation to the service account:

eks.amazonaws.com/sts-regional-endpoints: true

Example of parameters during the deployment:

cloudwatchExporter:
  ...
  serviceAccount:
    annotations:
      eks.amazonaws.com/role-arn: arn:aws:iam::$account_id:role/$iam_role
      eks.amazonaws.com/sts-regional-endpoints: true

Otherwise, replace true with false.

Using an IAM User

You can use an IAM user to give permissions to cloudwatch-exporter.

Firstly, you should create IAM policies for access to CloudWatch. The cloudwatch:ListMetrics, cloudwatch:GetMetricStatistics, and cloudwatch:GetMetricData IAM permissions are required.

Role in JSON:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "cloudwatch:GetMetricData",
                "cloudwatch:GetMetricStatistics",
                "cloudwatch:ListMetrics"
            ],
            "Resource": "*"
        }
    ]
}

Important: The tag:GetResources permission is required to access to Resource Groups and Tagging endpoints, like tagging.<region>.amazonaws.com, which doesn't work with VPC. So the aws_tag_select feature does not work with VPC. For the full list of endpoints available in VPC, see https://docs.aws.amazon.com/vpc/latest/privatelink/integrated-services-vpce-list.html.

The tag:GetResources IAM permission is also required to use the aws_tag_select feature:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "tag:GetResources"
            ],
            "Resource": "*"
        }
    ]
}

IAM permissions can be added directly to a user or you can first create Policies, Groups, and then add the earlier created group to the user.

To create a user:

1. Open IAM, and select Users.
2. Click Add Users.
3. Enter the user name and do not forget to set Access key - Programmatic access to generate the access key.
4. Select the earlier created group or permissions.
5. Create the user and save the Access Key ID and Secret Access Key.

Then manually create a Kubernetes secret with credentials in the namespace for cloudwatch-exporter. The secret must contain the aws_access_key_id field with AWS the access key ID and the aws_secret_access_key field with the Secret access key. In this case, set the name of the created secret in the .aws.secret.name parameter during the deployment.

Otherwise, you can specify the AWS access key ID and Secret access key directly using .aws.aws_access_key_id and .aws.aws_secret_access_key parameters during the deployment.

VPC Endpoint Configuration

Important: This is a very important step if you are using a Virtual Private Cloud (VPC) Without a VPC endpoint for CloudWatch, the exported data cannot get access to its endpoint (non-global, non-regional).

You have to configure a VPC endpoint for CloudWatch if you are using VPC in AWS.

For more information about VPC, see https://docs.aws.amazon.com/vpc/latest/userguide/what-is-amazon-vpc.html.

To add a VPC endpoint:

1. Use AWS Console and navigate to VPC.
2. Open Virtual Private Cloud > Endpoints.
3. Check the Service Name column whether com.amazonaws.<region>.monitoring already exists. If yes, then skip the following steps.
4. Click Create Endpoint.

5. Select:

   Service category: AWS Services
   Service Name: Find and select com.amazonaws.<region>.monitoring
   VPC: Select necessary VPC
   Set another settings


6. Click Create Endpoint.

Warning: A typical mistake made when creating a VPC endpoint is the wrong Security Group. You should specify the group which allows the pod in AWS EKS to get access to the VPC endpoint.

Deploy cloudwatch-exporter in AWS

Important: Note that .cloudwatchExporter.config below contains a very simple example. You should specify the list of metrics and dimensions that you have to get from CloudWatch. For the lists of full metrics, refer to CloudWatch Metrics.

Note: Pay attention to the settings that can be specified under the cloudwatchExporter.config parameter, such as,

cloudwatchExporter:
  serviceMonitor:
   interval: 2m
  config:
    period_seconds: 120
    delay_seconds: 60

These parameters are very important to get the actual metrics from CloudWatch without a delay. The default value of delay_seconds is 600 s, and this parameter is used to avoid collecting data that has not fully converged. 600 s specifies that the exporter fetches data only after 600 s = 10 m. To decrease the delay, it is recommended to decrease the value to 60 s. This time is enough for CloudWatch to collect the metrics and allows cloudwatch_exporter to fetch them.

Refer to the official documentation of cloudwatch_exporter for full descriptions of all parameters at https://github.com/prometheus/cloudwatch_exporter#configuration.

To deploy Monitoring with cloudwatch-exporter, the following parameters have to be added in the deployment:

cloudwatchExporter:
  install: true
  resources:
    limits:
      cpu: 200m
      memory: 256Mi
    requests:
      cpu: 100m
      memory: 128Mi
  aws:
    aws_access_key_id: <access_key_id>
    aws_secret_access_key: <secret_access_key>
  config: |-
    # This is the default configuration for prometheus-cloudwatch-exporter
    region: us-east-1
    period_seconds: 120
    delay_seconds: 60
    metrics:
    ### PostgreSQL
    - aws_namespace: AWS/RDS
      aws_metric_name: DatabaseConnections
      aws_dimensions: [DBInstanceIdentifier]
      aws_statistics: [Average]
    - aws_namespace: AWS/RDS
      aws_metric_name: DiskQueueDepth
      aws_dimensions: [DBInstanceIdentifier]
      aws_statistics: [Average]

How to Check CloudWatch Integration

If all settings are specified correctly and all users have correct permissions as a result in Prometheus, the collected metrics are displayed.

All metrics that Prometheus collects from cloudwatch-exporter has names starting from aws_, nd the name of a metric is constructed as:

aws_<namespace_name>_<metric_name>_<aggregation>

For example:

aws_rds_disk_queue_depth_average
aws_kafka_bytes_in_per_sec_average

In general, you can just find metrics which start from aws_ in the Prometheus UI and check that they exist.

Send Metrics in AWS CloudWatch

TBD

Grafana Dashboards

This section describes examples grafana dashboards and cloudwatch-exporter configuration for it.

Services:

• AWS/EFS
• AWS/EBS
• AWS/S3
• AWS/ClassicELB
• AWS/ApplicationELB
• AWS/NetworkELB
• AWS/RabbitMQ
• AWS/Cassandra

NOTE: You can include it into cloudwatch-exporter configmap in namespace where monitoring-operator installed.

During installation, you can use parameters:

cloudwatchExporter:
  install: true
  config: |-
        region: ${CLOUDWATCH_REGION}
        period_seconds: 120
        delay_seconds: 60
        metrics:
          <Put there list of configuration from below examples.>

NOTE: You can use those examples with cloudwatch-exporter configuration which contains all metrics from AWS Cloudwatch for each service.

Read installation guide cloudwatch-exporter section for details.

EFS

AWS EFS dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### EFS
  - aws_dimensions: [FileSystemId]
    aws_metric_name: PercentIOLimit
    aws_namespace: AWS/EFS
    aws_statistics: [Average]
  - aws_dimensions: [FileSystemId]
    aws_metric_name: BurstCreditBalance
    aws_namespace: AWS/EFS
    aws_statistics: [Average]
  - aws_dimensions: [FileSystemId]
    aws_metric_name: MeteredIOBytes
    aws_namespace: AWS/EFS
    aws_statistics: [Sum]
  - aws_dimensions: [FileSystemId]
    aws_metric_name: TotalIOBytes
    aws_namespace: AWS/EFS
    aws_statistics: [Sum]
  - aws_dimensions: [FileSystemId]
    aws_metric_name: DataReadIOBytes
    aws_namespace: AWS/EFS
    aws_statistics: [Sum]
  - aws_dimensions: [FileSystemId]
    aws_metric_name: DataWriteIOBytes
    aws_namespace: AWS/EFS
    aws_statistics: [Sum]
  - aws_dimensions: [FileSystemId]
    aws_metric_name: MetadataIOBytes
    aws_namespace: AWS/EFS
    aws_statistics: [Sum]
  - aws_dimensions: [FileSystemId]
    aws_metric_name: ClientConnections
    aws_namespace: AWS/EFS
    aws_statistics: [Sum]
  - aws_dimensions: [FileSystemId, StorageClass]
    aws_metric_name: StorageBytes
    aws_namespace: AWS/EFS
    aws_statistics: [Average]

EBS

AWS EBS dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### EBS
  - aws_dimensions: [VolumeId]
    aws_metric_name: VolumeReadBytes
    aws_namespace: AWS/EBS
    aws_statistics: [Sum]
  - aws_dimensions: [VolumeId]
    aws_metric_name: VolumeWriteBytes
    aws_namespace: AWS/EBS
    aws_statistics: [Sum]
  - aws_dimensions: [VolumeId]
    aws_metric_name: VolumeReadOps
    aws_namespace: AWS/EBS
    aws_statistics: [Sum]
  - aws_dimensions: [VolumeId]
    aws_metric_name: VolumeWriteOps
    aws_namespace: AWS/EBS
    aws_statistics: [Sum]
  - aws_dimensions: [VolumeId]
    aws_metric_name: VolumeTotalReadTime
    aws_namespace: AWS/EBS
    aws_statistics: [Sum]
  - aws_dimensions: [VolumeId]
    aws_metric_name: VolumeTotalWriteTime
    aws_namespace: AWS/EBS
    aws_statistics: [Sum]
  - aws_dimensions: [VolumeId]
    aws_metric_name: BurstBalance
    aws_namespace: AWS/EBS
    aws_statistics: [Average]

S3

AWS S3 dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### S3
  - aws_dimensions: [StorageType, BucketName]
    aws_metric_name: BucketSizeBytes
    aws_namespace: AWS/S3
    aws_statistics: [Average]
  - aws_dimensions: [StorageType, BucketName]
    aws_metric_name: NumberOfObjects
    aws_namespace: AWS/S3
    aws_statistics: [Average]

Classic ELB

AWS classic ELB dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### Classic ELB
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: HealthyHostCount
    aws_namespace: AWS/ELB
    aws_statistics: [Maximum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: UnHealthyHostCount
    aws_namespace: AWS/ELB
    aws_statistics: [Minimum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: Latency
    aws_namespace: AWS/ELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: RequestCount
    aws_namespace: AWS/ELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: HTTPCode_ELB_4XX
    aws_namespace: AWS/ELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: HTTPCode_ELB_5XX
    aws_namespace: AWS/ELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: BackendConnectionErrors
    aws_namespace: AWS/ELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: SpilloverCount
    aws_namespace: AWS/ELB
    aws_statistics: [Sum]

Application ELB

AWS application ELB dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### Application ELB
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: ActiveConnectionCount
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: ConsumedLCUs
    aws_dimensions: [LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: HTTPCode_ELB_4XX_Count
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: HTTPCode_ELB_5XX_Count
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: ProcessedBytes
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: RequestCount
    aws_dimensions: [TargetGroup, LoadBalancer, AvailabilityZone]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: RejectedConnectionCount
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: HealthyHostCount
    aws_dimensions: [TargetGroup, LoadBalancer, AvailabilityZone]
    aws_statistics: [Minimum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: UnHealthyHostCount
    aws_dimensions: [TargetGroup, LoadBalancer, AvailabilityZone]
    aws_statistics: [Maximum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: ELBAuthSuccess
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: ELBAuthLatency
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: ELBAuthError
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]
  - aws_namespace: AWS/ApplicationELB
    aws_metric_name: ELBAuthFailure
    aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_statistics: [Sum]

Network ELB

AWS network ELB dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### NetworkELB
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ActiveFlowCount
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ActiveFlowCount_TCP
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ActiveFlowCount_TLS
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ActiveFlowCount_UDP
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [LoadBalancer]
    aws_metric_name: ConsumedLCUs
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [LoadBalancer]
    aws_metric_name: ConsumedLCUs_TCP
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [LoadBalancer]
    aws_metric_name: ConsumedLCUs_TLS
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [LoadBalancer]
    aws_metric_name: ConsumedLCUs_UDP
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Average]
  - aws_dimensions: [AvailabilityZone, LoadBalancer, TargetGroup]
    aws_metric_name: HealthyHostCount
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Minimum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ProcessedBytes
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ProcessedBytes_TCP
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ProcessedBytes_TLS
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ProcessedBytes_UDP
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: ProcessedPackets
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Sum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer, TargetGroup]
    aws_metric_name: UnHealthyHostCount
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Maximum]
  - aws_dimensions: [AvailabilityZone, LoadBalancer]
    aws_metric_name: PeakPacketsPerSecond
    aws_namespace: AWS/NetworkELB
    aws_statistics: [Maximum]

RabbitMQ

AWS RabbitMQ dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### RabbitMQ
  - aws_dimensions: [Broker]
    aws_metric_name: ExchangeCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: QueueCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: ConnectionCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: ChannelCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: ConsumerCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: MessageCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Sum]
  - aws_dimensions: [Broker]
    aws_metric_name: MessageReadyCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Sum]
  - aws_dimensions: [Broker]
    aws_metric_name: MessageUnacknowledgedCount
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Sum]
  - aws_dimensions: [Broker]
    aws_metric_name: PublishRate
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: ConfirmRate
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: AckRate
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: SystemCpuUtilization
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: RabbitMQMemLimit
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: RabbitMQMemUsed
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: RabbitMQDiskFreeLimit
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: RabbitMQDiskFree
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]
  - aws_dimensions: [Broker]
    aws_metric_name: RabbitMQFdUsed
    aws_namespace: AWS/AmazonMQ
    aws_statistics: [Average]

Cassandra

AWS Cassandra dashboard required following Cloudwatch-exporter configuration:

region: us-east-1
period_seconds: 120
delay_seconds: 60
metrics:
  ### Cassandra
  - aws_dimensions: []
    aws_metric_name: AccountMaxTableLevelReads
    aws_namespace: AWS/Cassandra
    aws_statistics: [Maximum]
  - aws_dimensions: []
    aws_metric_name: AccountMaxTableLevelWrites
    aws_namespace: AWS/Cassandra
    aws_statistics: [Maximum]
  - aws_dimensions: []
    aws_metric_name: AccountProvisionedReadCapacityUtilization
    aws_namespace: AWS/Cassandra
    aws_statistics: [Average]
  - aws_dimensions: []
    aws_metric_name: AccountProvisionedWriteCapacityUtilization
    aws_namespace: AWS/Cassandra
    aws_statistics: [Average]
  - aws_dimensions: [Keyspace, TableName]
    aws_metric_name: BillableTableSizeInBytes
    aws_namespace: AWS/Cassandra
    aws_statistics: [Average]
  - aws_dimensions: [Keyspace, Operation, TableName]
    aws_metric_name: ReadThrottleEvents
    aws_namespace: AWS/Cassandra
    aws_statistics: [SampleCount]
  - aws_dimensions: [Keyspace, Operation, TableName]
    aws_metric_name: SuccessfulRequestCount
    aws_namespace: AWS/Cassandra
    aws_statistics: [SampleCount]
  - aws_dimensions: [Operation]
    aws_metric_name: SuccessfulRequestCount
    aws_namespace: AWS/Cassandra
    aws_statistics: [SampleCount]
  - aws_dimensions: [Keyspace, Operation]
    aws_metric_name: SuccessfulRequestCount
    aws_namespace: AWS/Cassandra
    aws_statistics: [SampleCount]
  - aws_dimensions: [Keyspace, Operation, TableName]
    aws_metric_name: SuccessfulRequestLatency
    aws_namespace: AWS/Cassandra
    aws_statistics: [Sum]
  - aws_dimensions: [Operation]
    aws_metric_name: SuccessfulRequestLatency
    aws_namespace: AWS/Cassandra
    aws_statistics: [Sum]
  - aws_dimensions: [Keyspace, Operation]
    aws_metric_name: SuccessfulRequestLatency
    aws_namespace: AWS/Cassandra
    aws_statistics: [Sum]
  - aws_dimensions: [Keyspace, Operation, TableName]
    aws_metric_name: SystemErrors
    aws_namespace: AWS/Cassandra
    aws_statistics: [SampleCount]
  - aws_dimensions: [Keyspace, Operation, TableName]
    aws_metric_name: UserErrors
    aws_namespace: AWS/Cassandra
    aws_statistics: [SampleCount]
  - aws_dimensions: [Keyspace, Operation, TableName]
    aws_metric_name: WriteThrottleEvents
    aws_namespace: AWS/Cassandra
    aws_statistics: [SampleCount]

AWS Managed Prometheus

Amazon Managed Service for Prometheus is a serverless, Prometheus-compatible monitoring service for container metrics that makes it easier to securely monitor container environments at scale. With Amazon Managed Service for Prometheus, you can use the same open-source Prometheus data model and query language that you use today to monitor the performance of your containerized workloads, and also enjoy improved scalability, availability, and security without having to manage the underlying infrastructure.

Amazon Managed Service for Prometheus automatically scales the ingestion, storage, and querying of operational metrics as workloads scale up and down. It integrates with AWS security services to enable fast and secure access to data.

Amazon Managed Service for Prometheus is designed to be highly available using multiple Availability Zone (Multi-AZ) deployments. Data ingested into a workspace is replicated across three Availability Zones in the same region.

Amazon Managed Service for Prometheus works with container clusters that run on Amazon Elastic Kubernetes Service and self-managed Kubernetes environments.

With Amazon Managed Service for Prometheus, you use the same open-source Prometheus data model and PromQL query language that you use with Prometheus. Engineering teams can use PromQL to filter, aggregate, and alarm on metrics and quickly gain performance visibility without any code changes. Amazon Managed Service for Prometheus provides flexible query capabilities without the operational cost and complexity.

Metrics ingested into a workspace are stored for 150 days, and are then automatically deleted.

Send Metrics to AWS Managed Prometheus

Warning: The ability for fully automatic installation exists only since version 0.33.0. Before this version, you have to manually add the annotation Service Account.

Create Workspace

A workspace is a logical space dedicated to the storage and querying of Prometheus metrics. A workspace supports fine-grained access control for authorizing its management such as update, list, describe, and delete, and the ingestion and querying of metrics. You can have one or more workspaces in each region in your account.

To set up a workspace, implement the following steps.

To create a workspace using AWS CLI

1. Enter the following command to create a workspace. This example creates a workspace named my-first-workspace, but you can use a different alias if you want. Workspace aliases are friendly names that help you identify your workspaces. They do not have to be unique. Two workspaces could have the same alias, but all workspaces have unique workspace IDs, which are generated by Amazon Managed Service for Prometheus.

   aws amp create-workspace [ --alias my-first-workspace]


   This command returns the following data:

   • workspaceId is the unique ID for this workspace. Make a note of this ID.
   • arn is the ARN for this workspace.
   • status is the current status of the workspace. Immediately after you create the workspace, the status will be CREATING.

2. If the create-workspace command returns a status of CREATING, you can then enter the following command to find when the workspace is ready. Replace my-workspace-id with the value that the create-workspace command returned for workspaceId.

   aws amp describe-workspace --workspace-id my-workspace-id


When the describe-workspace command returns ACTIVE for status, the workspace is ready to use.

To create a workspace using a console

1. Open the Amazon Managed Service for Prometheus console at https://console.aws.amazon.com/prometheus/.
2. For Workspace alias, enter an alias for the new workspace. Workspace aliases are friendly names that help you identify your workspaces. They do not have to be unique. Two workspaces could have the same alias, but all workspaces have unique workspace IDs, which are generated by Amazon Managed Service for Prometheus.
3. (Optional) To add tags to the namespace, choose the Add new tag. Then, for Key, enter a name for the tag. You can add an optional value for the tag in Value. To add another tag, choose Add new tag again.
4. Choose Create workspace. The workspace details page is displayed. This displays information including the status, ARN, workspace ID, and endpoint URLs for this workspace for both remote write and queries. Initially, the status is "CREATING". Wait until the status is "ACTIVE", before you move to setting up your metric ingestion. Make notes of the URLs displayed for the endpoint - remote write URL and Endpoint - query URL. They are needed when you configure the Prometheus server to remote write metrics to this workspace, and when you query those metrics.

Ingest Prometheus Metrics to the Workspace

This section explains how to set up the ingestion of metrics into a workspace.

Ingesting metrics is done using Prometheus remote write. Remote write enables the sending of samples to a remote storage destination. For more information about remote write configurations, see https://prometheus.io/docs/prometheus/latest/configuration/configuration/#remote_write in the Prometheus documentation.

Metrics ingested into a workspace are stored for 150 days, and are then automatically deleted.

Set up IAM Roles for Service Accounts

Warning: Before creating an IAM role for Kubernetes, do not forget to configure the OIDC provider for EKS. For more information, see IAM Roles for Service Accounts at https://docs.aws.amazon.com/eks/latest/userguide/iam-roles-for-service-accounts.html in the Amazon EKS Security Guide.

For the method of onboarding, use IAM roles for service accounts in the Amazon EKS cluster where the Prometheus server is running.

With IAM roles for service accounts, you can associate an IAM role with a Kubernetes service account. This service account can then provide AWS permissions to the containers in any pod that uses that service account.

For more information, see IAM Roles for Service Accounts in https://docs.aws.amazon.com/eks/latest/userguide/iam-roles-for-service-accounts.html.

If you have not already set up these roles, follow the instructions at Set up service roles for the ingestion of metrics from Amazon EKS clusters to set up the roles.

The instructions in that section require the use of eksctl. For more information, see Getting started with Amazon Elastic Kubernetes Service – eksctl, https://docs.aws.amazon.com/eks/latest/userguide/getting-started-eksctl.html.

Note: When you are not on EKS or AWS, and are using just access key and secret key to access Amazon Managed Service for Prometheus, you cannot use the EKS-IAM-ROLE based SigV4.

To create an IAM role to ingest metrics from Prometheus servers in Amazon EKS clusters, follow the instruction in the official documentation at https://docs.aws.amazon.com/prometheus/latest/userguide/set-up-irsa.html#set-up-irsa-ingest.

Copy and run the script from the instructions. As a result, an IAM role with the name amp-iamproxy-ingest-role is created. Implement the following steps to get ARN for this role.

To get an ARN for a role using the AWS CLI

1. Enter the following command to get the IAM role. This example returns a role.

aws iam get-role --role-name amp-iamproxy-ingest-role

The following data is returned:

{
  "Role": {
      "Description": "amp-iamproxy-ingest-role",
      "AssumeRolePolicyDocument":"<URL-encoded-JSON>",
      "MaxSessionDuration": 3600,
      "RoleId": "AROA1234567890EXAMPLE",
      "CreateDate": "2019-11-13T16:45:56Z",
      "RoleName": "amp-iamproxy-ingest-role",
      "Path": "/",
      "RoleLastUsed": {
          "Region": "us-east-1",
          "LastUsedDate": "2019-11-13T17:14:00Z"
      },
      "Arn": "arn:aws:iam::123456789012:role/amp-iamproxy-ingest-role"
  }
}

The Arn field is required for the next procedure.

To get an ARN for a role using a console

1. Open the IAM console at https://console.aws.amazon.com/iam/.
2. Navigate to Roles. Search and open the IAM role with name amp-iamproxy-ingest-role.
3. Search the ARN field and keep it for the next procedure.

Deploy Monitoring and Start Ingesting Metrics

Note: The .prometheus.serviceAccount parameter is available only since the 0.33.0 version.

In deployment parameters for Monitoring, specify the following set:

## These example applicable as to deploy parameters and for PlatformMonitoring CR

prometheus:
  ...
  serviceAccount:
    annotations:
      eks.amazonaws.com/role-arn: <IAM_PROXY_PROMETHEUS_ROLE_ARN>
  remoteWrite:
    - url: https://aps-workspaces.<AWS_REGION>.amazonaws.com/workspaces/<WORKSPACE_ID>/api/v1/remote_write
      sigv4:
        region: <AWS_REGION>
      queueConfig:
        maxSamplesPerSend: 1000
        maxShards: 200
        capacity: 2500
  ...

Where:

• IAM_PROXY_PROMETHEUS_ROLE_ARN is ARN of the amp-iamproxy-ingest-role that was created previously.
• WORKSPACE_ID is the ID of your Amazon Managed Service for the Prometheus workspace.
• AWS_REGION is the region of your Amazon Managed Service for the Prometheus workspace.

Also, all the parameters in <NAME> have to be replaced.

Then, just deploy Monitoring.

Configure Ingesting Metrics in AWS VPC

If you use Amazon Virtual Private Cloud (Amazon VPC) to host your AWS resources, you can establish a private connection between your VPC and Amazon Managed Service for Prometheus. You can use these connections to enable Amazon Managed Service for Prometheus to communicate with your resources on your VPC without going through the public internet.

For more information about Amazon VPC, see https://docs.aws.amazon.com/vpc/latest/userguide/.

To use Amazon Managed Service for Prometheus in AWS VPC, create VPC endpoints as follows.

Choose from the following service name endpoints:

• bash com.amazonaws.<region>.aps-workspaces

Choose this service name to work with Prometheus-compatible APIs. For more information, see https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-APIReference.html#AMP-APIReference-Prometheus-Compatible-Apis.

• bash com.amazonaws.<region>.aps

Choose this service name to perform workspace management tasks. For more information, see https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-APIReference.html#AMP-APIReference-AMPApis.

For more information about how to create an interface VPC endpoint, see https://docs.aws.amazon.com/vpc/latest/privatelink/vpce-interface.html#create-interface-endpoint.

It is not required to change your settings to call another AWS service. If you created an interface VPC endpoint for Amazon Managed Service for Prometheus, and already have data flowing to the workspaces located on your VPC, the metrics flows through the interface VPC endpoint by default. Amazon Managed Service for Prometheus uses public endpoints or private interface endpoints (whichever are in use) to perform this task.

Then add some additional parameters, which are needed to be added to parameters described in the previous topic, for deploying Monitoring.

Add the following parameters:

• Annotation to specify the need to use regional endpoints.

prometheus:
  ...
  serviceAccounts:
    annotations:
      eks.amazonaws.com/sts-regional-endpoints: true

• Environment variable into prometheus container to specify the need to use regional endpoints.

prometheus:
  ...
  containers:
    - name: prometheus
       env:
         - name: AWS_STS_REGIONAL_ENDPOINTS
            value: regional

This step is required because currently prometheus-operator doesn't allow to automatically add this variable when Service Account has the eks.amazonaws.com/sts-regional-endpoints: true annotation. For more information, see the issue EKS deployment of Prom: remote_write using sigv4 defaults to the wrong STS endpoint for private VPCs at https://github.com/prometheus/prometheus/issues/10308.

The resulting deployment parameters are:

## These example applicable as to deploy parameters and for PlatformMonitoring CR

prometheus:
  ...
  containers:
  - name: prometheus
      env:
        - name: AWS_STS_REGIONAL_ENDPOINTS
          value: regional
  serviceAccounts:
    annotations:
      eks.amazonaws.com/sts-regional-endpoints: true
      eks.amazonaws.com/role-arn: <IAM_PROXY_PROMETHEUS_ROLE_ARN>
  remoteWrite:
    - url: https://aps-workspaces.<AWS_REGION>.amazonaws.com/workspaces/<WORKSPACE_ID>/api/v1/remote_write
      sigv4:
        region: <AWS_REGION>
      queue_config:
        max_samples_per_send: 1000
        max_shards: 200
        capacity: 2500
  ...

Send High-Availability Data

With Amazon Managed Service for Prometheus, use multiple Prometheus instances as servers in the high-availability mode. This section shows you how to set up Prometheus servers as collectors with a high-availability configuration. Amazon Managed Service for Prometheus de-duplicates your metrics and doesn't charge you twice.

When you set up de-duplication, Amazon Managed Service for Prometheus makes one Prometheus instance a leader replica and ingests data samples only from that replica. If the leader replica stops sending data samples to Amazon Managed Service for Prometheus for 30 seconds, Amazon Managed Service for Prometheus automatically makes another Prometheus instance a leader replica and ingests data from the new leader.

Important: If you do not set up de-duplication, you are charged for all data samples that are sent to Amazon Managed Service for Prometheus. These data samples include duplicate samples.

Configure Monitoring Stack to Send High-Availability Data

To set up a high-availability configuration with Prometheus Operator, apply external labels on all instances of a high-availability group, so that Amazon Managed Service for Prometheus can identify them. Also, set the replicaExternalLabelName and externalLabels parameters for Monitoring deployment.

For example, in the following yaml, cluster is added to externalLabel to identify a Prometheus instance agent as part of a high-availability group, and replicaExternalLabels identifies each replica in the group.

Note: The parameter .prometheus.replicaExternalLabelName is available only since the 0.33.0 version.

prometheus:
  ...
  replicaExternalLabelName: __replica__
  externalLabels:
    cluster: prom-dev
  ...

Create Recording Rules

There are no any specific settings for Monitoring. Follow the procedure described in the official documentation at https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-Ruler.html

Create Alert Rules

There are no any specific settings for Monitoring. Follow the procedure described in the official documentation at https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-alert-manager.html

Links

• AWS CloudWatch
• What is Amazon CloudWatch?: https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/WhatIsCloudWatch.html
• Using Amazon CloudWatch dashboards: https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/CloudWatch_Dashboards.html
• Using Amazon CloudWatch metrics: https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/working_with_metrics.html
• Using Amazon CloudWatch alarms: https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/AlarmThatSendsEmail.html
• CloudWatch service quotas: https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/cloudwatch_limits.html
• AWS Managed Prometheus
• What is Amazon Managed Service for Prometheus?: https://docs.aws.amazon.com/prometheus/latest/userguide/what-is-Amazon-Managed-Service-Prometheus.html
• Ingest Prometheus metrics to the workspace: https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-onboard-ingest-metrics.html
• Query your Prometheus metrics: https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-onboard-query.html
• Recording rules and alerting rules: https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-Ruler.html
• Alert manager and templating: https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-alert-manager.html
• Troubleshooting: https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-troubleshooting.html
• Amazon Managed Service for Prometheus service quotas: https://docs.aws.amazon.com/prometheus/latest/userguide/AMP_quotas.html
