This document describes how to configure TLS for Monitoring components and how to integrate them with the Cert-manager.

Overview

Prometheus supports Transport Layer Security (TLS) encryption for connections to Prometheus instances. If you would like to enforce TLS for those connections, you would need to create a specific web configuration file.

Architecture

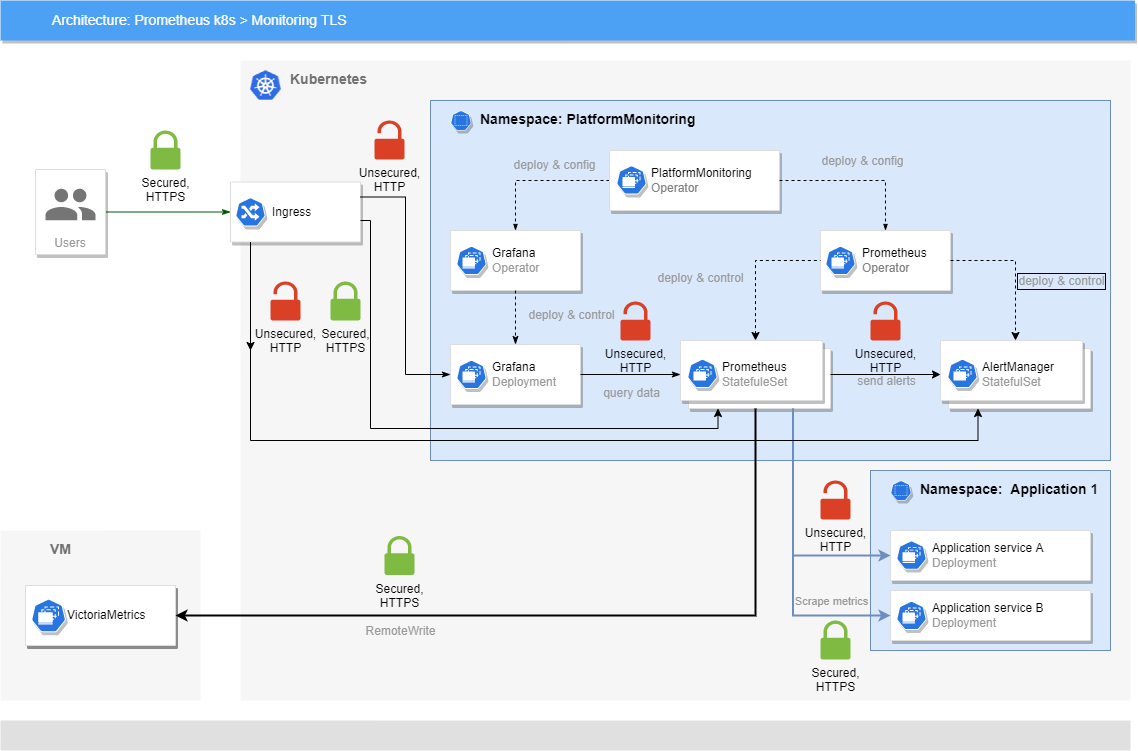

The diagram below shows a simplified structure of the architecture and secure connections between components.

Prometheus TLS architecture

In general, we provide ability to enable TLS in Prometheus,but connection between prometheus and grafana\alertmanager is unsecured (HTTP) with option to skipping TLS verify.

If enable TLS in Prometheus we have secured connection between Prometheus and Ingress. Ingress must have certificates to getting access to Prometheus UI.

Steps to renew certificates

TLS certificates have a limited duration, and you can update them over time by replacing the content of corresponding Secrets. Cert-manager can do that automatically if you set renewBefore parameter for certificate.

Unfortunately, in some cases, the renewal of certificates at destinations doesn't happen automatically and additional steps are required. The table below reflects actions required after updating the certificates:

Service No extra steps Restart pod
Ingresses ✓
Prometheus server ✓
Prometheus targets ✓
AlertManager TBD TBD
Grafana TBD TBD

After restart, Prometheus server may be unavailable for a short time.

Warning!: Notice that if Prometheus uses emptyDir as long-term storage, your data will be lost during restart. To avoid this behavior, please, use PV or remote storage to store metrics.

You can set TLS configuration in Pod/Service Monitors with certificates. If you renew these certs, prometheus-operator will apply changes to Prometheus targets configuration in runtime.

Restrictions and bugs

  • Now Grafana are getting metrics from Prometheus without certificate verify. Grafana allows enabling TLS, but certificates to store in open-view in GrafanaDataSource CRD. It is unsecure. Feature request to Grafana community to add ability to store certificates in secret.
  • Alertmanager doesn't support TLS.
  • Feature request to Prometheus community to support TLS.
  • Feature request to Alertmanager supports mTLS.
  • Pull request in progress.

Parameters for Prometheus

Section prometheus.tlsConfig defines the TLS parameters for Prometheus.

For more information, refer to https://github.com/prometheus-operator/prometheus-operator/blob/v0.79.2/Documentation/api.md#webtlsconfig

Field Description Scheme
keySecret Secret containing the TLS key for the server. For more information, refer to *v1.SecretKeySelector object
cert Contains the TLS certificate for the server. For more information, refer to SecretOrConfigMap object
client_ca Contains the CA certificate for client certificate authentication to the server. For more information, refer to SecretOrConfigMap object
clientAuthType Server policy for client authentication. Maps to ClientAuth Policies. For more detail on clientAuth options: https://golang.org/pkg/crypto/tls/#ClientAuthType string
generateCerts Allows to configure generation of TLS certificate for Prometheus by cert-manager. object
createSecret Specifies content for secret that will be created. object

webTLSConfig

Secret containing the TLS key for the server.

Fields keySecret and cert required for webTLSConfig section if you want to use pre-created Secrets.

Example:

prometheus:
  tlsConfig:
    webTLSConfig:
      keySecret:
        name: prometheus-tls
        key: tls.key
      cert:
        secret:
          name: prometheus-tls
          key: tls.crt
      client_ca:
        secret:
          name: prometheus-tls
          key: tls.crt

clientAuthType

Server policy for client authentication. Maps to ClientAuth Policies.

Available values:

  • NoClientCert indicates that no client certificate should be requested during the handshake, and if any certificates are sent they will not be verified.
  • RequestClientCert indicates that a client certificate should be requested during the handshake, but does not require that the client send any certificates.
  • RequireAnyClientCert indicates that a client certificate should be requested during the handshake, and that at least one certificate is required to be sent by the client, but that certificate is not required to be valid.
  • VerifyClientCertIfGiven indicates that a client certificate should be requested during the handshake, but does not require that the client sends a certificate. If the client does send a certificate it is required to be valid.
  • RequireAndVerifyClientCert indicates that a client certificate should be requested during the handshake, and that at least one valid certificate is required to be sent by the client.

NOTE: By default, clientAuthType is VerifyClientCertIfGiven if you will be use client_ca. NoClientCert is unavailable with client_ca.

generateCerts

Allows to configure generation of TLS certificate for Prometheus by cert-manager.

If tlsConfig.generateCerts.enabled is true, the monitoring-operator will create Issuer, Certificate and use it for TLS in Prometheus.

If set to true, certs and key from generated secret instead of specified in the tlsConfig.webTLSConfig section. Other parameters from the tlsConfig.webTLSConfig section (e.g. clientAuthType`) will not be overridden.

Field Description Scheme
enabled Enable integration with cert-manager. bool
secretName Name of generated secret with certificate, CA certificate and private key. Default value is prometheus-cert-manager-tls. string
clusterIssuerName You can set this parameter to use Cluster Issuer. Otherwise, if this parameter is empty, self-signed non-cluster Issuer will be created and used in the new Certificate resource. string
duration Defines duration of the certificate in days. int
renewBefore Specifies how long before expiry a certificate should be renewed. int

Example of all available parameters in this section:

prometheus:
  tlsConfig:
    generateCerts:
      enabled: false
      secretName: prometheus-cert-manager-tls
      clusterIssuerName: ""
      duration: 365
      renewBefore: 15

createSecret

Specifies content for secret that will be created.

Field Description Scheme
name Name of secret with cert, ca and key string
cert TLS certificate for prometheus. By default, cert will be stored in secret with tls.crt key. string
key TLS key for prometheus. By default, cert will be stored in secret with tls.key key. string
ca TLS CA for prometheus. By default, cert will be stored in secret with ca.crt key. string

Example of configuration:

prometheus:
  tlsConfig:
    createSecret:
      name: web-prometheus-certificates
      cert: |-
        -----BEGIN CERTIFICATE-----
        ...
        -----END CERTIFICATE-----
      key: |-
        -----BEGIN PRIVATE KEY-----
        ...
        -----END PRIVATE KEY-----
      ca: |-
         -----BEGIN CERTIFICATE-----
        ...
        ------END CERTIFICATE-----

Example of secret that will be create:

kind: Secret
apiVersion: v1
metadata:
  name: <prometheus.tlsConfig.secret.name>
  labels:
    app.kubernetes.io/component: monitoring
    app.kubernetes.io/name: prometheus
data:
  ca.crt: <prometheus.tlsConfig.secret.ca>
  tls.crt: <prometheus.tlsConfig.secret.cert>
  tls.key: <prometheus.tlsConfig.secret.key>

Ingress configuration

You can secure an Ingress by specifying a Secret that contains a TLS private key and certificate. The Ingress resource only supports a single TLS port, 443.

NOTE: The TLS secret must contain keys named tls.crt and tls.key that contain the certificate and private key to use for TLS. For example:

apiVersion: v1
kind: Secret
metadata:
  name: testsecret-tls
  namespace: default
data:
  tls.crt: # base64 encoded cert
  tls.key: # base64 encoded key
type: kubernetes.io/tls

You can use prometheus.ingress.tlsSecretName for enabling TLS to Ingress. For example:

...
prometheus:
  ...
  ingress:
    install: true
    host: prometheus.test.com
    tlsSecretName: prometheus-tls
  ...
...

NOTE: you can create and use secret that specified in prometheus.tlsConfig.secret.

For more information, refer to https://kubernetes.io/docs/concepts/services-networking/ingress/#tls

About cert-manager

Cert-manager is X.509 certificate controller for Kubernetes and OpenShift workloads. It will obtain certificates from a variety of Issuers, both popular public Issuers as well as private Issuers, and ensure the certificates are valid and up-to-date, and will attempt to renew certificates at a configured time before expiry.

In order for cert-manager to generate a secret containing certificates and private key, you need to take several steps:

  1. Make sure cert-manager is installed on the cluster. It is usually installed in the cert-manager namespace.
  2. You should use Issuer or ClusterIssuer resource for creating certificate. These resources represent certificate authorities (CAs) that are able to generate signed certificates by honoring certificate signing requests. Example of namespaced self-signed Issuer resource:
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: prometheus-tls-issuer
spec:
  selfSigned: {}
  1. Then you can create Certificate resource. Configuration of this resource allows to change parameters of generated certificates and private key. You can find an example of certificate resource here.
  2. Cert-manager will create Certificate Request resource based on created Certificate resource.
  3. Also, cert-manager will create Secret resource with name specified in the Certificate resource previously. Generated secret contains fields ca.crt with PEM CA certificate, tls.crt with PEM private key and tls.key with PEM signed certificate chain by default.

The generated secret can be used in pods later as a volume.

Monitoring-operator integration with cert-manager

If you use monitoring-operator, you don't need to create cert-manager resources for its components manually. These resources can be created by Helm or monitoring-operator during deploy in some cases.

Cert-manager certificates for Prometheus

You can specify prometheus.tlsConfig.generateCerts section to use cert-manager for TLS in Prometheus and the corresponding Ingress.

To create and use cert-manager resources, just specify the prometheus.tlsConfig.generateCerts.enabled parameter. This is the only required parameter in the section.

If you set prometheus.tlsConfig.generateCerts.enabled to true during deploy, Certificate CR and (optionally) Issuer CR will be created in the namespaces with the monitoring-operator by Helm. Then cert-manager will make Certificate Request CR and Secret with ca.crt, tls.crt and tls.key fields automatically. At the same time the monitoring-operator will create Prometheus with the Secret generated by cert-manager that will be mounted as volume. Generated certs will be used in enabled TLS automatically. Also, TLS with the same certs will be turned on in the corresponding Prometheus' Ingress. You do not need to specify parameters in the Ingress section in this case.

In addition to the generateCerts.enabled parameter the generateCerts section allows configuring the following values:

  • generateCerts.secretName: defines the name of the generated Secret (prometheus-cert-manager-tls by default).
  • generateCerts.clusterIssuerName: allows to specify pre-created ClusterIssuer instead of Issuer created by Helm to verify generated certs. Notice that ClusterIssuer is a cluster-wide entity and should be created manually before deploy in any namespace on cluster. If clusterIssuerName is empty (by default), Helm will create self-signed Issuer.
  • generateCerts.duration: allows configuring duration of generated certificates (integer value in days; 365 by default).
  • generateCerts.renewBefore: specifies how long before expiry a certificate should be renewed (integer value in days; 15 by default).

NOTE: Prometheus cannot update certificates in the container automatically. See more in Steps to renew certificates.

New certificates in Ingresses and Prometheus targets (these certs can be specified in Pod/Service monitors) reinstalled automatically.

Cert-manager certificates for AlertManager

TBD (Monitoring-operator do not support TLS for AlertManager yet)

Cert-manager certificates for Grafana

TBD (Monitoring-operator do not support TLS for Grafana yet)

Cert-manager certificates for Victoriametrics

You can specify victoriametrics.<vm_component>.tlsConfig.generateCerts section to use cert-manager for TLS in Victoriametrics. In order to enable TLS for all victoriametrics components, it is necessary to set victoriametrics.tlsEnabled to true. By default, cert-manager will be used to generate certificates. In order for cert-manager to generate certificates, it is necessary to provide the self-signed cluster issuer name using victoriametrics.clusterIssuerName. The certificate CR and the secret with with ca.crt, tls.crt and tls.key fields will be automatically generated by the operator using Helm and cert-manager respectively.

generateCerts section allows configuring the following values:

generateCerts.secretName: defines the name of the generated Secret (<vm_component>-tls-secret by default).

generateCerts.duration: allows configuring duration of generated certificates (integer value in days; 365 by default).

generateCerts.renewBefore: specifies how long before expiry a certificate should be renewed (integer value in days; 15 by default).

Examples

Example to create secret

...
prometheus:
  tlsConfig:
    webTLSConfig:
      keySecret:
        name: prometheus-tls
        key: tls.key
      cert:
        secret:
          name: prometheus-tls
          key: tls.crt
    createSecret:
      name: prometheus-tls
      cert: |-
        -----BEGIN CERTIFICATE-----
        ...
        -----END CERTIFICATE-----
      key: |-
        -----BEGIN PRIVATE KEY-----
        ...
        -----END PRIVATE KEY-----
      ca: |-
        -----BEGIN CERTIFICATE-----
        ...
        -----END CERTIFICATE-----
...

Cert-manager certificates for Victoriametrics

You can specify victoriametrics.<vm_component>.tlsConfig.generateCerts section to use cert-manager for TLS configuration in Victoriametrics.

Example with manually pre-created secret

...
prometheus:
  tlsConfig:
    webTLSConfig:
      keySecret:
        name: pre-created-secret
        key: tls.key
      cert:
        secret:
          name: pre-created-secret
          key: tls.crt
      client_ca:
        secret:
          name: pre-created-secret
          key: ca.crt
  ingress:
    install: true
    host: <host>
    tlsSecretName: pre-created-secret
...

Example full parameters with creating secret

...
prometheus:
  tlsConfig:
    webTLSConfig:
      clientAuthType: "VerifyClientCertIfGiven"
      keySecret:
        name: prometheus-tls
        key: tls.key
      cert:
        secret:
          name: prometheus-tls
          key: tls.crt
      client_ca:
        secret:
          name: prometheus-tls
          key: ca.crt
    createSecret:
      name: prometheus-tls
      cert: |
        <data>
      key: |
        <data>
      ca: |
        <data>
  ingress:
    install: true
    host: <host>
    tlsSecretName: prometheus-tls
...
