DI-Portal-PKGVER-020 Export of discrepancy analysis results for arbitrary package versions in Excel

Design Item ID: DI-Portal-PKGVER-020
Design Item Name: Export of discrepancy analysis results for arbitrary package versions in Excel
Related Design Items: -
Related API:

• Export API changes to xlsx file (GET /api/v3/packages/{packageId}/versions/{version}/{apiType}/export/changes)

Revision History:

Date	Description

---

Description

This functionality allows users to export a list of all REST/GraphQL operations that have changed between different versions or revisions within the same package.

Start Point

1. User navigates to APIHUB Portal → workspace → package version→ compare versions/revisions
2. User navigates to APIHUB Portal → workspace → group → package version→ compare versions/revisions

Execution

1. User clicks [Export] button.
2. The system displays two options to export the list of changed operations to Excel:
   • All changes - all changed operations from the current package version will be exported.
   • Filtered changes - only currently displayed (filtered) changes will be exported.
3. User selects the required option.
4. The system exports the list of changed operations to an Excel file.
   • API to export operations to xlsx file - GET /api/v3/packages/{packageId}/versions/{version}/{apiType}/export/changes
     • No query parameters are required if all changed operations will be exported.
     • If exporting filtered changes, then query parameters and their usage are the same as in change filtering.

Security

User must have “read” permission for the package to export the list of changed operations to an Excel file.

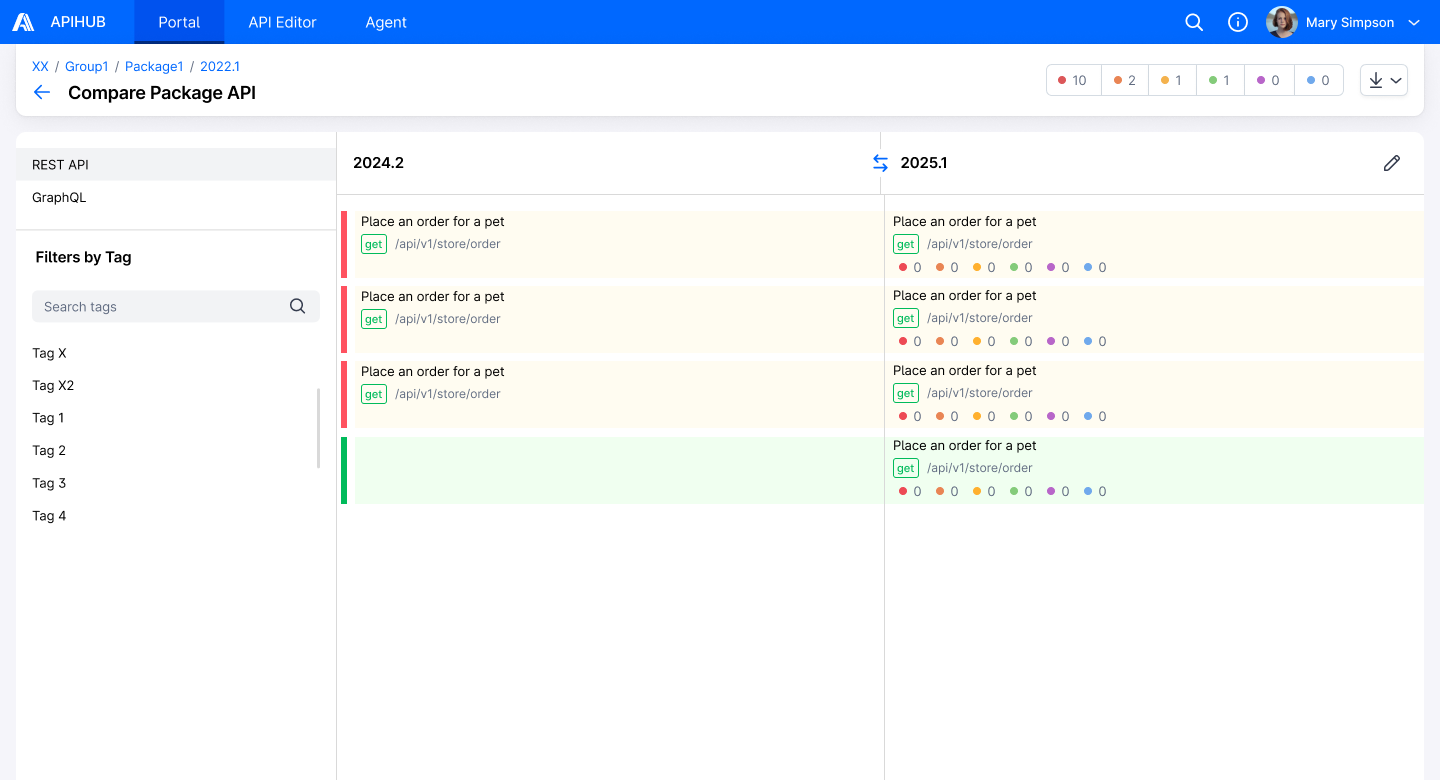

Mockups
