DI-Portal-PKGVER-022 OpenAPI Document Overview

Design Item ID: DI-Portal-PKGVER-022
Design Item Name: OpenAPI Document Overview
Related Design Items:

• List of Documents

Related API:

• Get document details (GET /api/v3/packages/{packageId}/versions/{version}/documents/{slug})

Revision History:

Date	Description

---

Description

The functionality allows the user to see an overview information of OpenAPI specification.

Start Point

1. User navigates to APIHUB Portal → workspace → group → package version -> documents tab.

Execution

1. User selects OpenAPI document.
2. The system shows the following information:
   • title from info.title field of specification
   • version from info.version field of specification
   • document labels
   • contact information from info.contact object of specification
   • license information from info.license object of specification
   • term of service information from info.termsOfService field of specification
   • info about external documentation from externalDocs object of specification
   • description (rendered Markdown) from info.description field of specification
   • ===
   • API to show document overview:
     • GET /api/v3/packages/{packageId}/versions/{version}/documents/{slug}

Contact object:

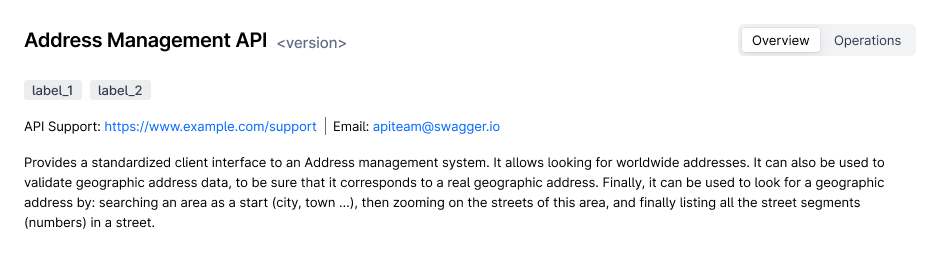

1. if all 3 fields name, url and ‘email’ are specified, then display: - <name field value>: <url field value> | Email: <email field value>


2. if only name field is specified, then display nothing.

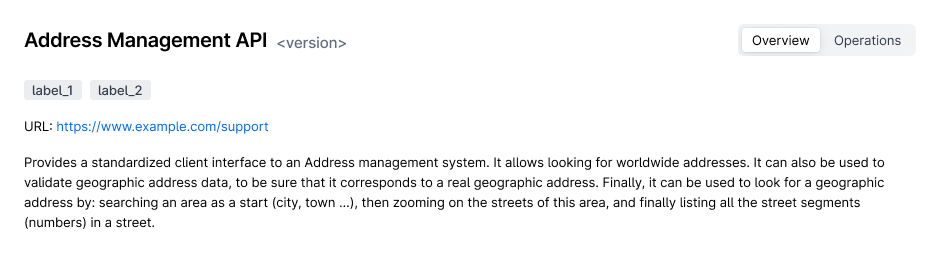

3. if only url field is specified, then display: - URL: <url field value>

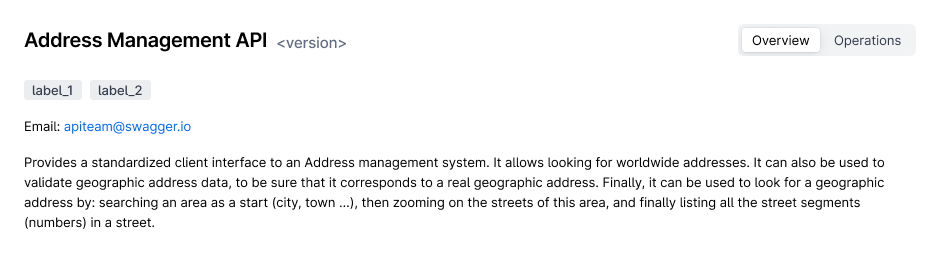

4. if only ‘email’ field is specified, then display: - Email: <email field value>

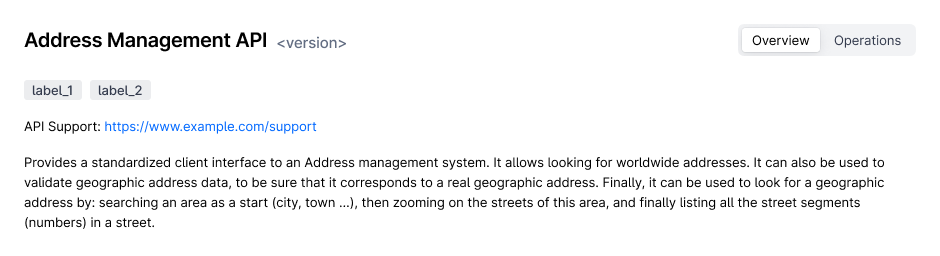

5. if name and url fields are specified, then display: - <name field value>: <url field value>

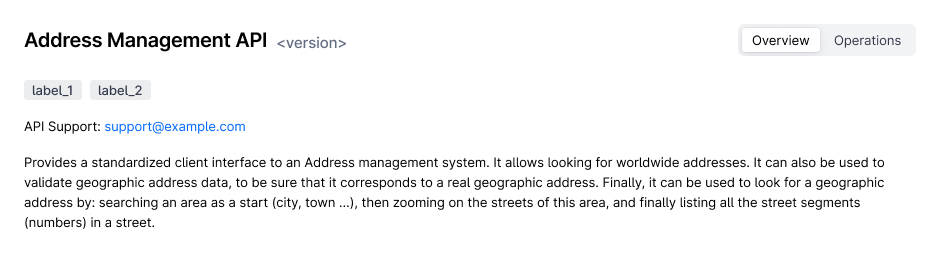

6. if name and ‘email’ fields are specified, then display: - <name field value>: <email field value>

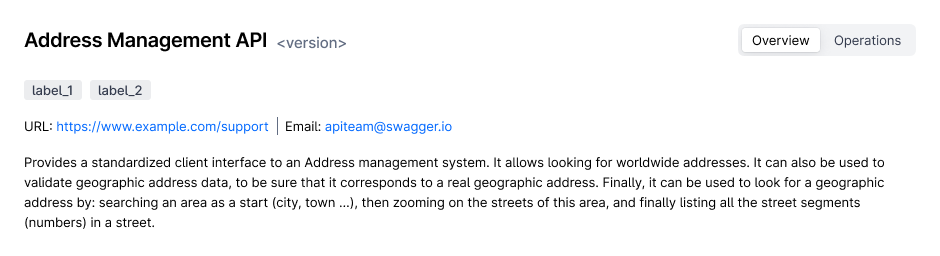

7. if url and ‘email’ fields are specified, then display: - URL: <url field value> | <Email>: <email field value>

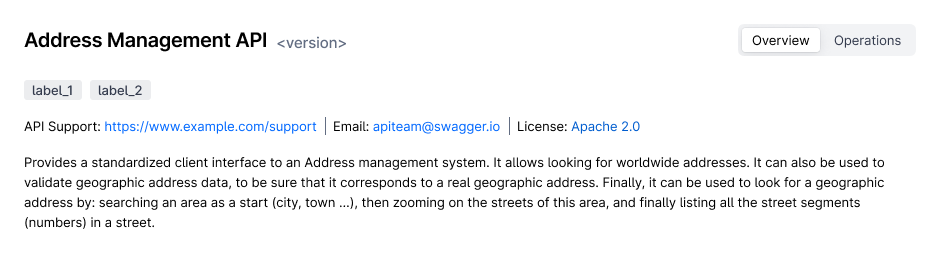

License object:

1. if name and url fields are specified, then display
   • License: <name field value> with link to URL field value

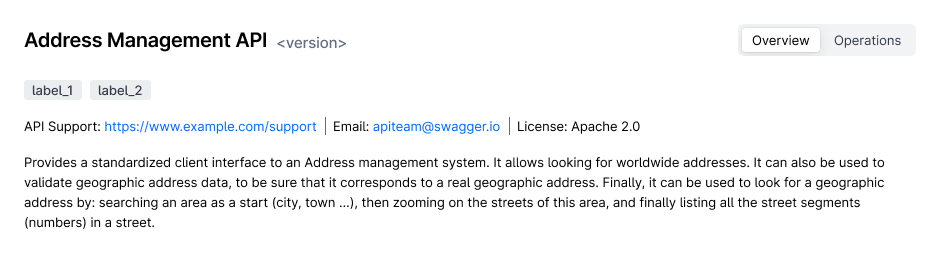

2. if only name field is specified then display:
   • License: <name field value>

3. if only url field is specified - incorrect case, since name is required field in OpenAPI. Ignore license object in this case.

termsOfService field:

1. if termsOfService field is specified, then display:
   • Term of service (with link to termsOfService field value)

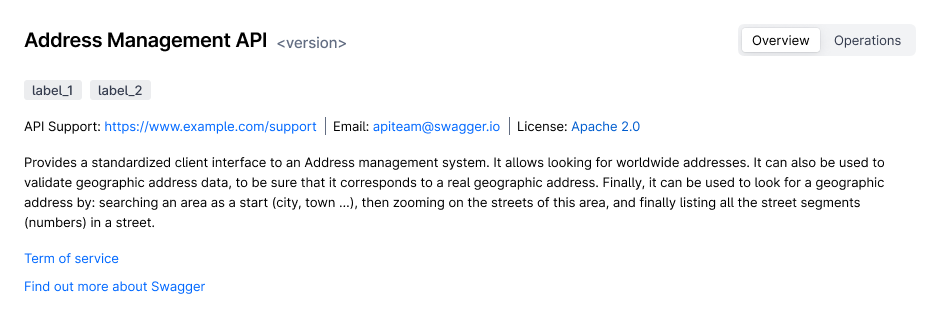

externalDocs:

1. if name and url fields are specified, then display:
   • <name field value> (with link to URL field value)

2. if only url field is specified, then display:
   • <URL field value> (with link to URL field value)
3. if only name field is specified - incorrect case, since URL is required field in OpenAPI. Ignore externalDocs object in this case.

Security

OpenAPI document overview is available for all users, which have “read” permission for the appropriate package.

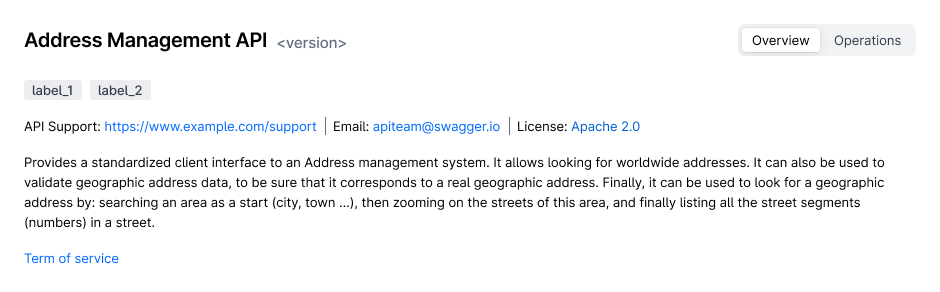

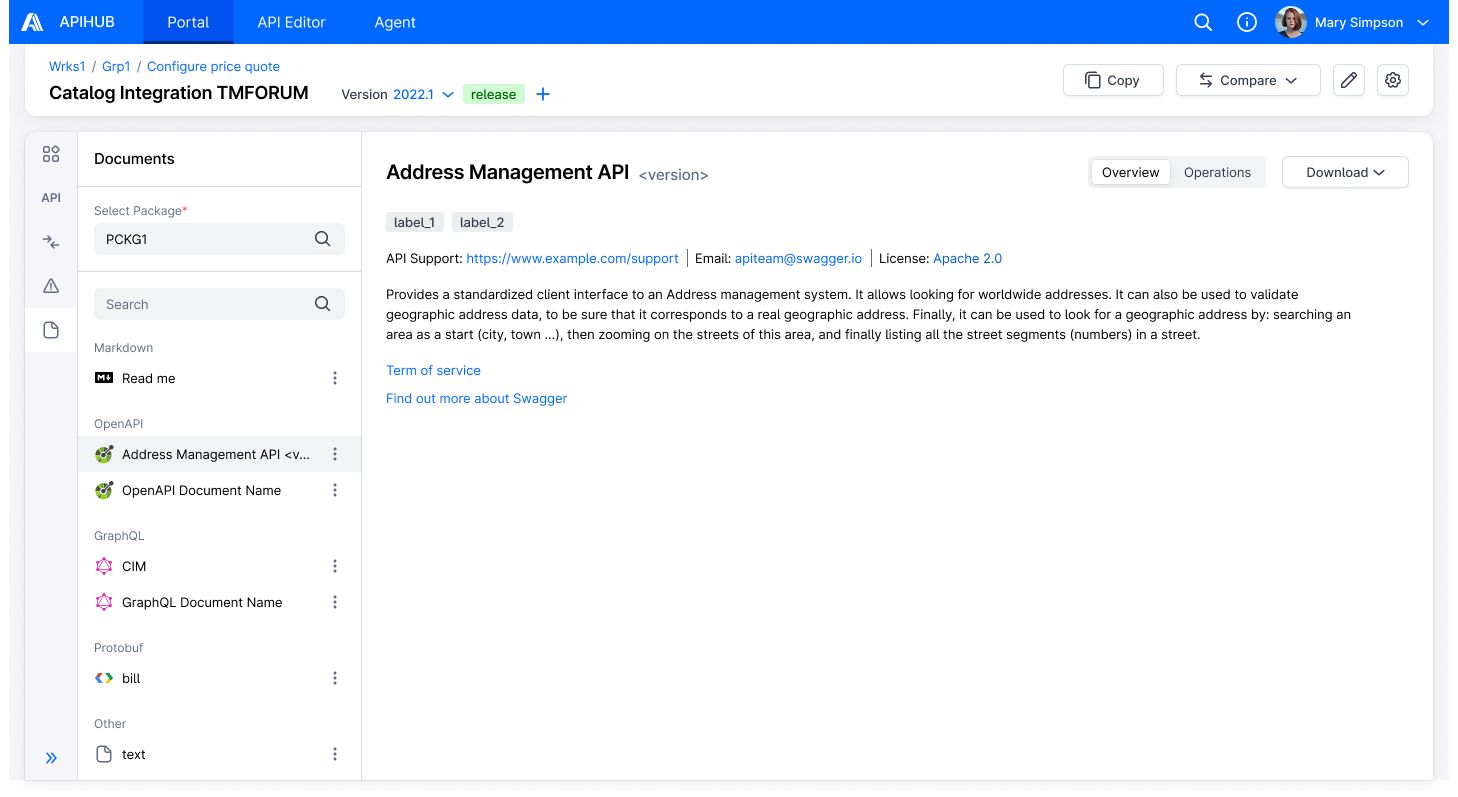

Screen View
